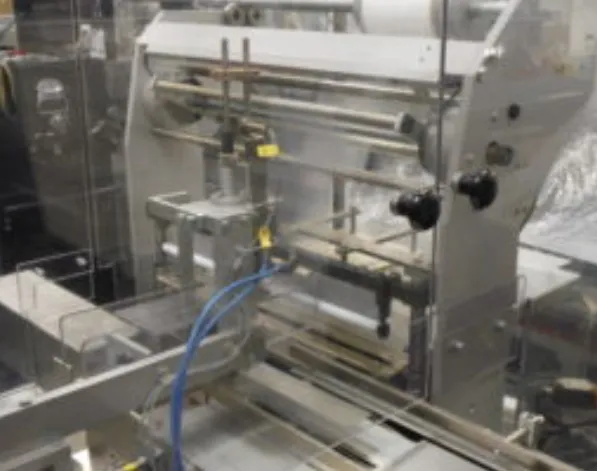

CAM ASB38 Automatic Bundler
Automatic bundler stretch-bander model “ASB38”
The CAM automatic bundler model “ASB38” is one ofthe simplest and most compact machines available onthe market. It can solve any problem relevant to collationand bundling of cartons, bottles, trays, and various productsin any arrangement.
– The use of a single reel of wrapping material allows a betterusage of it and a real reduction in changeover times.
– The electromechanical stretching system allows a constantband tension independent of the reel diameter.
– The single sealing position, accurately repeated on the bundle,considerably improves the package appearance.
– The sealing obtained by means of a sealing bar in conjunctionwith a film brake unit, guarantees an excellent uniform seal.
In-line in feed with side belts to turn cartons on edge.
Tray loading system, trays are loaded onto an indexing conveyorbelt and transferred to a hopper.
The cartons are collated into the required format and transferredto the loading hopper.
The cartons are pushed up through the hopper into the tray.
The cartons and trays are pushed through the film which is thensealed around the tray and the cartons.
Completely Refurbished by ourselves in 2002
Refurbished again by us in 2011 machine was shipped but never used in production.
