Track & Trace TQS-SP

Track & Trace TQS-SP

User-friendly serialisation for use in small spaces

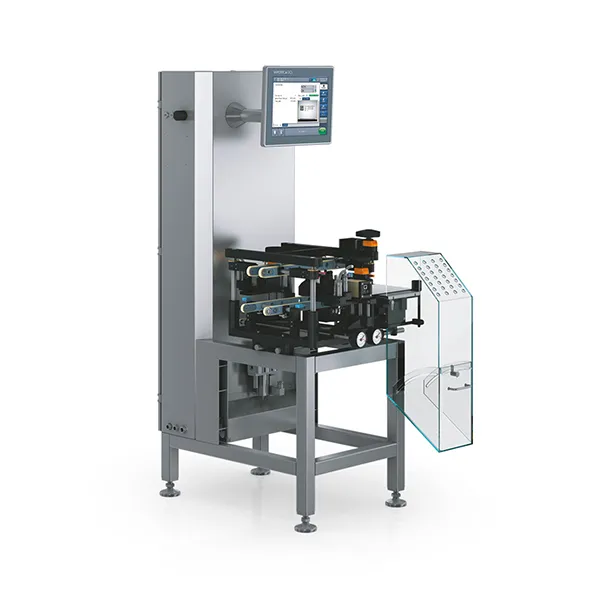

TQS-SP is a user-friendly solution for the serialisation of individual cartons. The folding boxes are conveyed by a specially designed, double guided top/bottom belt conveyor that ensures stable positioning after leaving the cartoner.

The TQS top/bottom belt conveyor is fully adjustable in three dimensions to quickly and easily accommodate various carton formats. The codes are printed as required on the flaps (front or back side) or the top of the folding boxes. The TQS-SP can be installed into a line network with automated product feed or as a mobile stand-alone unit with manual supply. The unit can be retrofitted into any existing packaging line.

Thanks to ConfigureFast, identical print data is sent directly to the printer and to the camera‘s print imager. All system components are quickly and easily controlled from one single user interface without having to switch programs.

Key Features

•      Highly precise product transport
•      Fastest configuration with ConfigureFast
•      Flexible print head / camera mounting position
•      Large 15” display with touchscreen and intuitive control menu (19” optional)
•      Validation packets and documentation IQ/OQ, FDS, RA, TM (optional)
•      Tool free format change

Your Benefits

•      All-in-one operations concept for quick and easy handling
•      High throughput rate of up to 600 pcs/min (300 pcs/min is standard)
•      Space-saving unit for quick integration and operational readiness helps            achieve cost reductions
