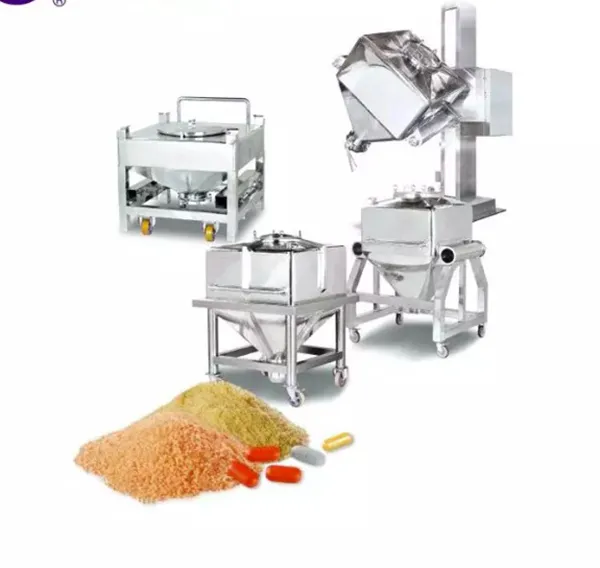

BIN (IBC) & BIN System
Bin (also known as Intermediate Bulk Container, IBC) and Bin system are for powder handling applications to store, transfer and mix for close containment. They are very easy to transfer and clean. The volume of IBC is from 20 liters up to 1500 liters, the optional device of Vacuum Suction Device is available to fit with the IBC.
RELATED DEVICES WITH BINS
- Bin Mixer
- Bin Lifter (Feeding)
- Bin Washer
BIN MIXER:
The IBC is attachable with a Bin Mixer thorough mixing of powder and granules by rotating the IBC.
BIN LIFTER:
Attach with Bin on lifting device can make an ease transfer. Discharging of Bins is accepted standard for close containment.
BIN WASHER:
The Bin Washer combines with the IBC, a high pressure pump, an autovalve and a lifting washing nozzle to clean in an automatic program.
BIN DISPENSER:
Raw materials, powder, and granules can be dispensed in different levels for charging or dischargin of Bins.
FEATURES
Bin Mixer:
1. Bins can be either storage or mixing.
2. Special design for different size of Bins can fit in one Bin Mixer System.
3. Ease of cleaning and movement.
4. Variety models can be chosen: fixed type or lifting type.
Bin Lifter:
1. Ease of lifting Bins to charge (feeding) in a closed system.
2. Special design to fit with the feeding of a tabletting machine, a capsule filling machine and a counting machine.
3. To fit with the Bins to move up and down, and rotate in 90 degrees.
4. You can choose an auto process control: lift up → to the expected height → rotating → back slowly to the position.
SPECIFICATION SHEET
|
Bin
|
Bin Mixer
|
Lifter / Tilting
|
|
Model
|
Full Capacity
|
Model
|
Mixing Capacity
|
Model
|
Max. Powder Load
|
|
(L)
|
40%~70% (L)
|
(Kg)
|
|
BIN-20
|
20
|
BM-20
|
8~14
|
|
|
BIN-50
|
50
|
BM-50
|
20~35
|
|
|
BIN-100
|
100
|
BM-100
|
40~70
|
LD/LT-60
|
100
|
|
BIN-200
|
200
|
BM-200
|
80~140
|
|
BIN-300
|
300
|
BM-300
|
120~210
|
LD/LT-100
|
150
|
|
BIN-400
|
400
|
BM-400
|
160~280
|
|
BIN-500
|
500
|
BM-500
|
200~350
|
LD/LT-200
|
300
|
|
BIN-600
|
600
|
BM-600
|
240~420
|
|
BIN-800
|
800
|
BM-800
|
320~560
|
LD/LT-300
|
400
|
|
BIN-1000
|
1000
|
BM-1000
|
400~700
|
|
BIN-1200
|
1200
|
BM-1200
|
480~840
|
LD/LT-500
|
600
|
|
BIN-1500
|
1500
|
BM-1500
|
600~1050
|
* Specifications subject to change without notice.
APPLICATIONS
Bin and Bin System are easy to store and transfer powder or granules in food, pharmaceutical and chemical industries.
