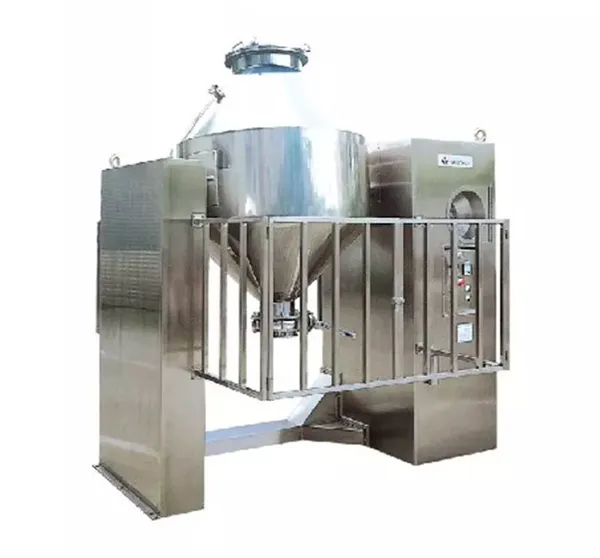

Double Cone Mixer
Double Cone Mixer
Mixer: For the powder, granule, lubricant adding, binder, seasoning's adding and mixing of western medicine, Chinese medicine and health food.
Four types of mixer: For powder, granule, mixing.
1. Best mixing result: Tumbling Mixer
2. Easy cleaning: V-Mixer
3. Cost saving: Double Cone Mixer
4. Lowest height: Rocking MixerMECHANICAL THEORY
The corn shaped mixer is wide in the middle and narrow of the both ends. Inside has baffles in the middle, when the powder or granules rolling up and down in the drum and hit the middle baffles, the best mixing result can be reached.
FEATURES
1. Well mixing effect
2. Simple structure
3. With safety gate and safety interlock
4. Can join with vacuum suction system and connect to dry granulator for closed type operation and continuous auto loading
SPECIFICATION SHEET
|
Model
|
Full Volume
|
Optimized Volume
(55%~60%)
|
Optimized Working Batch
(Assuming)0.6g/c.c.
|
Discharge Height
|
Discharge
|
Motor
|
R.P.M
|
Dimension
|
Weight
|
|
L
|
L
|
Kg
|
mm
|
|
HP
|
60Hz
|
L x W x H(mm)
|
Kg
|
|
YC-DM-20
|
20
|
11~12
|
6.6~7.2
|
580
|
3"
|
1/2
|
0~40
|
930x860x1310
|
200
|
|
YC-DM-100
|
100
|
55~60
|
33~36
|
580
|
3"
|
1
|
30
|
1400x1320x1650
|
800
|
|
YC-DM-300
|
300
|
165~180
|
99~108
|
800
|
6"
|
3
|
24
|
1850x1800x2500
|
1200
|
|
YC-DM-600
|
600
|
330~360
|
198~216
|
820
|
6"
|
5
|
20
|
2050x2000x2750
|
1600
|
|
YC-DM-1000
|
1000
|
550~600
|
330~360
|
820
|
8"
|
7-1/2
|
20
|
2340x2400x3030
|
1850
|
|
YC-DM-1500
|
1500
|
825~900
|
495~540
|
820
|
8"
|
10
|
20
|
2800x2900x3200
|
2000
|
|
YC-DM-2000
|
2000
|
1100~1200
|
660~720
|
820
|
8"
|
10
|
18
|
3200x3500x3700
|
2500
|
* Specifications subject to change without notice.
APPLICATIONS
Pharmaceutical, Food, Chemical, Fertilizer, Electronic metal powder, Dyes, Coloring and Agriculture.
