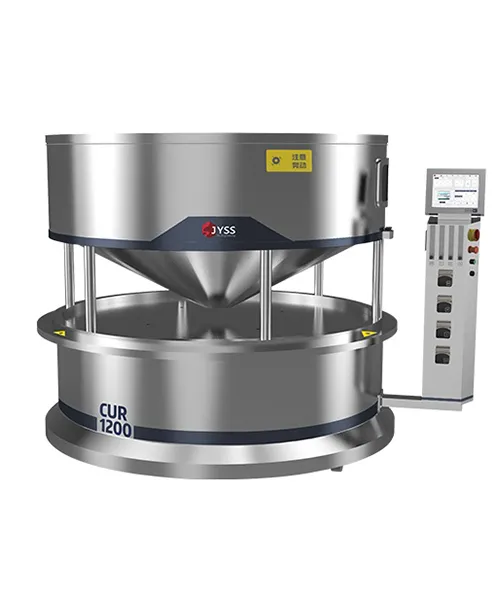

Single-Use Bioreactor - Current CUR

Single-Use Bioreactor - Current CUR

The CUR bioreactor adopts the "Non-bubbling Interfacial Oxygen Transfer Mechanism" for oxygen transfer, which has high volumetric oxygen transfer coefficient (kLa) and avoids the damage to cells caused by the  bubble surface tension and the high shear force of the stirring paddle in the traditional bioreactor, so it is easy to realize high-density and high-activity cell culture.It is applied for cell suspension culture (HEK293, CHO, etc.) and is suitable for different culture processes (Batch , Fed-Batch, Perfusionmodes), and can also achieve higher cell density and viability than traditional stirred bioreactors. Available in a wide range of size 2.5L, 5L, 50L, 300L, 500L, 1200L .

Features and Advantages

• Non-bubbling interface oxygen transfer mechanism, high oxygen transfer efficiency
•  No internal mixing impeller, extremely low shear forces
• Easy to achieve high viable cell density and high viability, 108cells/ml achieved
• Intelligent control system, simple operation interface
• Additional connection interfaces (Open common communication interfaces to support signal docking with third-party systems)
• Local online data monitor and control such as PH, DO, temperature and mixing speed,  real-time data record , reports and curves can be generated.
• Enable remote monitor and control of process parameters; multilevel user account management system configured that complies with FDA 21 CFR part 11 electronic records and electronic signatures.
• Short lead-time , 100% integrity test of bioreactor container
• Customized upon end user request

Application

Cell suspension cultivation
