ACCU-SCOPE

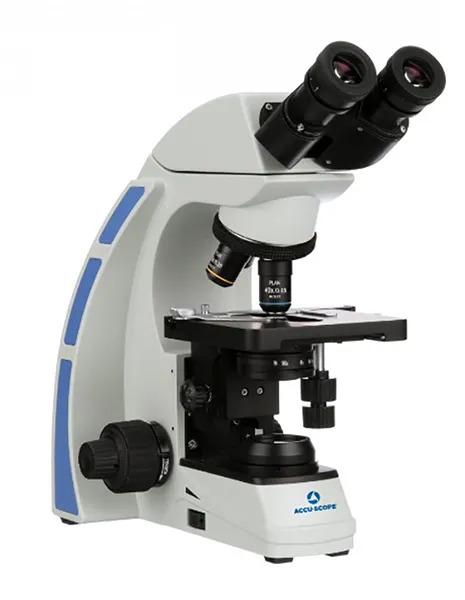

3000-LED Series Microscope with 4x 10x 40x Infinity Plan Achromat Objectives

Specifications

• Optical System: Infinity Optical System, f = 180mm, Anti-Mold
• Viewing Head: Binocular or Trinocular Siedentopf type, inclined 30°; interpupillary distance adjustment 48-75mm, 360° rotatable
• Eyepieces: HWF Plan 10x eyepiece, 20mm field of view with built-in diopter adjustment; a pointer is standard in one eyepiece; eyepieces are locked-in to prevent classroom tampering. Eyepiece accepts a Ø20.5mm reticle
• Nosepiece: Rear facing quadruple, ball bearing nosepiece with positive click stops to ensure parcentration
• Objectives: Infinity Plan Achromat 4x, 10x, 40xR* objectives -- (*spring-loaded)
• Stage: Mechanical Stage size 140mm X 132mm with X-Y movement range of 76mm X 50 mm
• Condenser: N.A. 1.25 Abbe condenser (with slot for sliders) on a rack and pinion with iris diaphragm; glass lens in condensing system protects iris diaphragm from classroom tampering
• Stand: Cast alloy aluminum
• Illumination: 3-watt LED with variable intensity control; LED bulb is rated for over 25,000 hours of continued use
• Focusing System: Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear
• Accessories: Dust cover, immersion oil and instruction manual, universal power supply 110v-240v
• Certification: ISO 9001: 2018 and ISO 14001: 2018; UL approved; CE anti-mold
