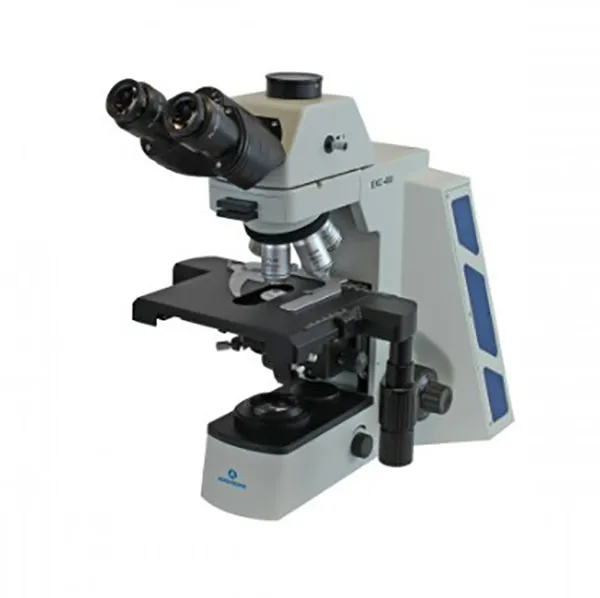

EXC-400 Trinocular Microscope with Plan Objectives

Specifications

• Optical System: Infinity optical system, f = 180mm, anti-mold
• Viewing Head: Trinocular (0:100, 50:50 split), inclined 30°, rotatable 360°; or Trinocular (0:100, 100:0 split) inclined 30°, rotatable 360°. Optional two head front-to-back or side-by-side teaching configurations
• Eyepieces: WF 10x/22mm focusable eyepieces with diopter adjustment and eyeguards. Optional 12.5x, 15x (accepts 20mm reticle) and 20x eyepieces are available
• Nosepiece: Reversed quintuple, ball bearing nosepiece with positive click stops to ensure parcentration
• Objectives: Infinity Plan Achromat 4x, 10x, 40xR* and 100xR oil* (*spring-loaded)
• Stage: Ceramic, hard-coated mechanical stage with low position coaxial controls; stage size 175mm x 153mm with X-Y movement range of 76mm X 50mm
• Condenser: N.A. 1.2/0.22 Swing-Out Achromat condenser, on a rack and pinion with iris diaphragm
• Stand: Cast alloy aluminum
