Accupack Engineering Pvt. Ltd.

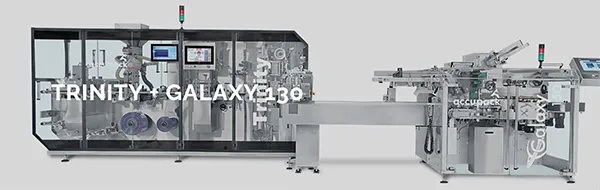

TRINITY + GALAXY 130

PRODUCT FEATURES

USP

• 240 blisters/min
• Tool-less change over
• Remote serviceability
• 130 cartons/min
• Very compact footprint
• Operator friendly design

KEY HIGHLIGHTS

• European design
• Servo driven mechanism for high accuracy and efficiency
• Ideal for frequent change-overs
• Multiple feeding solutions
• Cold forming & PP function
• Easy to clean due to cGMP compliant balcony design
• Ready for cartoning integration
• Minimal noise levels and vibrations
• Positive carton pick-up with three rotary arms
• No friction to carton while movement
• Multiple options available as different closing systems and leaflet feeders, camera systems, glue closure, variable data printing and many more
• Low Life-Cycle-Costs
• Outstanding delivery times due to lean production processes
• 24/7 service concept

TECHNICAL SPECIFICATIONS – TRINITY

• Output (Max): 240 blisters/min
• Mode of Operation: Double Lane
• Sealing Principle: Platen Sealing
• Blister Pack Length (Max): 252mm (248mm for ALU ALU)
• Blister Pack Width (Max): 90mm
• Advance (Max): 125mm
• Blister Forming Depth (Max): 12mm

• Thermo Forming Material: Laminated AL foils, PVC, PVDC, Duplex, Triplex, Aclar, PP
• Lidding Material: Hard AL, Soft AL, paper Al, CR foil, Laminated Paper
• Machine Forming Speed (Max): 40 cycles/min
• Machine Cutting Speed (Max): 120 strokes/min
• PVC Film Width (Max): 260mm
• Alu Foil Width (Max): 258mm
• Weight: 2500kg
