QUIK-FAB VJP

QUIK-FAB VJP

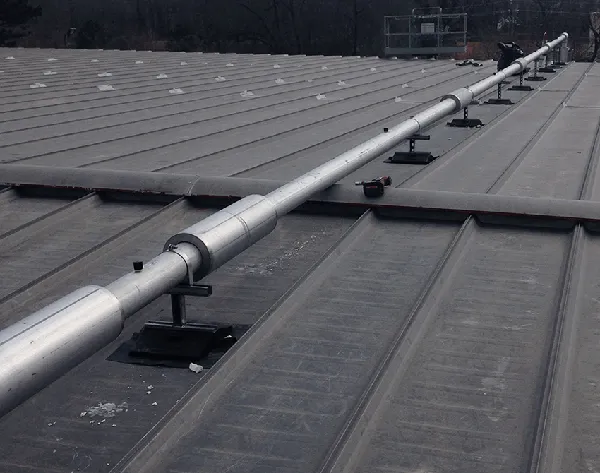

When time is critical, Acme offers pre-engineered VJP with mechanical foam joints with a quick lead time. Modular sections are offered in various length straights, with VJ elbow and Tee sections, which can be assembled for a fast, low cost, low heat leak VJP solution.

DESIGN

• Cryogenic Liquid Transfer (LN2, LAR, LNG, and LCO2)
• Designed per ASME B31.3
• MAWP = 150 PSIG (Internal Bellows) or MAWP = 400 PSIG (External Bellows)
• A312-304SS Pipe (inner line and outer jacket)
• Multilayer Insulation (MLI) “Super Insulation”
• Static Vacuum with Complete Getter System

FEATURES

• RELATED BENEFITS
• THERMAL PERFORMANCE: THE 1” THICK VACUUM INSULATION
• THE LOW PRESSURE, INTERNAL BELLOWS DESIGN
• STAINLESS STEEL PIPE SLEEVE
• MODULAR SECTIONS
• STRUCTURED MATERIAL PRICING
• VACUUM DESIGN LIFE OF OVER 10 YEARS
• CUSTOM LENGTHS, VJ FLEX SECTIONS AND VALVES ALSO AVAILABLE
