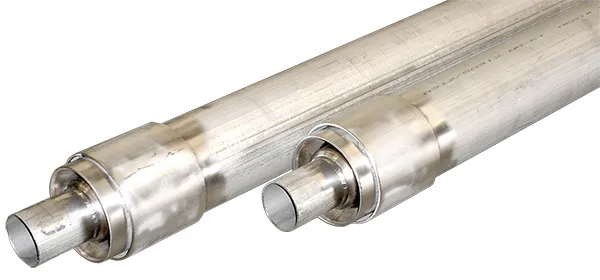

VACUUM JACKETED PIPE
Vacuum Jacketed Pipe is the preferred choice for the safe, reliable, and cost-effective transfer of cryogenic liquids including liquefied nitrogen, oxygen, argon, helium, hydrogen and natural gas. The VJP system consists of two 300 series stainless steel pipes: an inner pipe through which the cryogenic liquid flows, and an outer pipe that seals a vacuum space and forms a “vacuum jacket.” Multiple layer insulation (MLI) between the pipes coupled with a low vacuum ensures optimal thermal efficiency. Vacuum Jacketed Pipe efficiently transfers liquids at pressures up to 150 psi or greater. These systems minimize heat leaks to maximize efficiency and savings over time.
OVERVIEW
When an off-the-shelf, one-size-fits-all approach won’t do, you can trust Acme’s Vacuum Jacketed Pipe systems to meet your unique performance requirements. The Acme Cryogenics team designs manufacture and test our vacuum insulated piping and components using the highest available standards. All Inner Process and Outer Jacket Welds are Helium mass spectrometers tested at 1 x 10-9 cc/second, sealed at 9 microns or less.
VACUUM JACKETED PIPE FEATURES & BENEFITS
The Acme Cryogenics team designs, manufactures and tests our vacuum insulated piping and components using the highest available standards. All Inner Process and Outer Jacket Welds are Helium mass spectrometers tested at 1 x 10-9 cc/second, sealed at 9 microns or less. You can expect outstanding features and benefits from Acme’s VJM systems:
FEATURES
