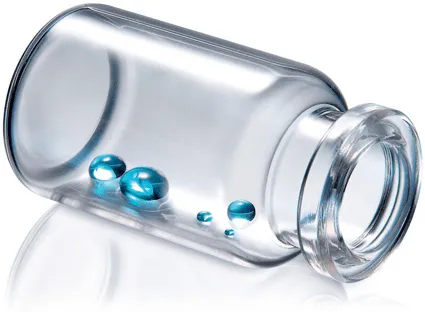

SCHOTT TopLyo Injection Vials
SCHOTT TopLyo Injection Vials
SCHOTT TopLyo® injection vials have been developed to optimise the containers role in the lyophilisation process through enhanced geometry and hydrophobic properties.
Product Details
- Hydrophobic internal coating
- Enhanced thermal transfer
- Optimised base design
- Inhibits product creep during lyophilisation
- Available in capacities: 2ml, 6ml, 10ml, 20ml, 50ml
Additional Product Information
SCHOTT Pharmaceutical Packaging have pioneered a new coating technology for pharmaceutical vials which are used in the lyophilisation process.
These SCHOTT TopLyo® vials are coated internally with a hydrophobic layer which gives improved geometric design and optimum efficiency for the lyophilization drug. The ultra-thin hydrophobic layer is between 40 - 100nm thick and is completely transparent.
Vials that feature these hydrophobic coatings have such homogeneous surfaces that lyophilised substances find it difficult to adhere to the inside walls, which means you produce a clean and consistent lyophilised cake, which results in the easy emptying of residual product volume after reconstitution.
As well as the hydrophobic layer, SCHOTT have optimised the geometry of the vials for enhanced thermal transfer, which also dramatically reduces glass breakage during the freeze drying process.
TopLyo® vials are available in capacities 2ml, 6ml, 10ml, 20ml & 50ml
