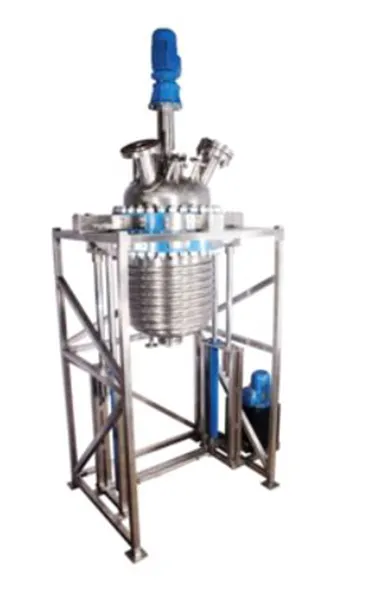

Gas Induction Reactors - Hydrogenator
Description: Gas Induction Reactors/Hydrogenators
Amar designs & manufacturers large scale high pressure chemical plant reactors upto 1000 ltr volume for different gas-liquid reactions and liquid-liquid reactions. Most of these gas induction reactors and hydrogenators find extensive applications for various high pressure gas–liquid reactions like hydrogenation, oxidation, nitration etc., where gas dispersion & mass transfer at high pressure form the key design element. Over the years, Amar has gained expertise in making extremely efficient high mass transfer gas induction agitators with high torque zero leakage maintenance free magnetic drives/couplings for hydrogenation units. These reactors are completely custom-built as per customers’ individual requirements of material, temperature, pressure conditions with option of providing valves, instrumentation, PLC panels, utilities, upstream & downstream equipment to form complete set-ups for pilot plants for various applications.
Hydrogenator Catalog
Gas induction reactor from 100ltr to 2000ltr (working) volumes
Materials SS-316, 316L, Hastelloy B/C, Monel, Inconel, Nickel, Titanium, Zirconium etc.
Design pressures upto 100bar (1450psi)
Maximum working temperatures upto 350 °C
Zero leakage magnetic drive coupling from 20-600 Nm torque capacity
High mass transfer hollow shaft with gas induction impeller (ideal for hydrogenation, oxidation, ammination, chlorination, bromination & other gas-liquid reactions) pitch blade turbine, anchor, propeller, paddle etc. for other applications
Skid mounted complete pilot plant with accessories & automation
All designs as per ASME codes
'U' stamp coded, PED certified reactors can be offered on request
