Multiple Reactors

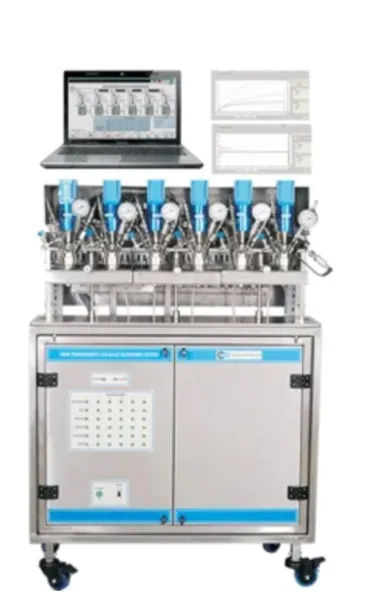

Multiple Parallel Reactor Synthesizer

• 4 or 6 nos. of 50 ml to 2 ltr parallel overhead stirred reactor autoclaves
• Common mounting & control panel with remote monitoring & control
• Pressures upto 350 bar & temperatures upto 500°C
• Simultaneous reactions can be carried out in each reactor with different parameters & comparative studies can be done from the data received. It saves lot of space & helps in advanced & faster research i.e. high throughput screening
• The optional accessories can be common or separate for all autoclaves

Automated High Throughput Screening

• Faster screening of reactions / catalysts by running all autoclaves in similar conditions
• Volumes: 50 ml - 750 ml, 4 or 6 or 8 nos. parallel autoclaves
• Pressures upto 350 bar & temperatures upto 500 °C
• Material: SS 316, Hastelloy B/C, Monel, Inconel, Titanium, Tantalum etc.
• Fully automated process from start to end without human intervention with manual mode for emergency/ malfunction/ bypass
• SCADA software for remote set points, control & recording of temperature, pressure, speed control, H2 gas flow rates, total H2 consumed with batch reports & online / history graphs
• Highly advanced programming & recipe management for leak test, N2 / H2 gas flushing, temperature profiling, speed control, H2 gas purging, pressure control with H2 gas uptake, heating, cooling, vent etc.
• Safety alarm & suitable interlocks for high & low temperature / pressure along with suitable safety rupture discs
• Highly advanced & compact for fitting in fume hood
• Complete SS construction

Eco Catalyst Screening

• Eco-cat 7 - 25: 7 parallel reactors of 25 ml volume each with common bottom stirring, heating & independent lids
• Design pressure - 100 bar at 200°C
• Maximum stirring speed 1000 RPM
• Material: SS 316, Hastelloy C, Inconel, Monel, Titanium & Tantalum etc.
• Very compact & economical system
• Ideal for high through-put catalyst screening
• Optional glass/ PTFE liner
