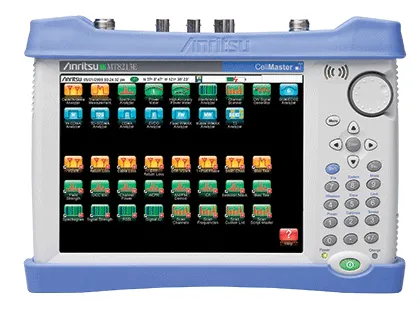

Cell Mastern MT8213E
Cell Mastern MT8213E
Description
The MT8213E Cell Master™ Base Station Analyzer is the smallest, lightest, and most economical solution for 2G/3G/4G, and WiMAX base station transmitter testing and ISDB-T and DVB-T/H digital broadcast field testing. It's ideal for installation and commissioning as well as for maintenance and troubleshooting.
This optimal combination of base station test capabilities in one handheld device eliminates the need for several independent test instruments, thereby reducing the number of tools the user must carry and learn to operate. Whether it’s sweeping cables, making power measurements, finding interference, troubleshooting base station signal quality, or verifying backhaul performance, the Cell Master MT8213E is the ideal all-in-one instrument to help keep your network up and running.
PIM Hunting mode is optimized for finding external IM products in conjunction with the MW82119B PIM Master.
In addition, easyTest Tools™ allows experienced users to Create, Deliver, and Display on-screen work instructions. These work instructions make life easier for less-experienced cable and antenna sweepers. Direct benefits include more accurate testing, repeatable results, and less rework. For more details see the easyTest Tools page.
FEATURES
- 30 analyzers in one
- Cable and Antenna Analyzer: 2 MHz – 6 GHz
- Return Loss, Cable Loss, VSWR, Distance-To-Fault
- Phase, 2-port Transmission Measurements
- Spectrum Analyzer: 9 kHz – 6 GHz
- Interference Analyzer with Interference Mapping, GPS
- High Accuracy Power Meter
- PIM Hunting
- 3GPP, including LTE/LTE-A, 3GPP2 and WiMAX signal analyzers
- ISDB-T and DVB-T/H signal analyzers
- Indoor and outdoor coverage mapping
- Easy-to-use Touch screen
- USB connectivity
- Most compact handheld
- PIM Alert (a downloadable easyTest™ script)
- Standard three-year warranty (battery one-year warranty)
APPLICATIONS
Cable and Antenna Analyzer Highlights
- Measurements: RL, VSWR, Cable Loss, DTF, Phase
- 2-port Transmission Measurement: High/Low Power
- Sweep Speed: 1 msec/data point, typical
- Display : Single or Dual Measurement Touchscreen
- Calibration: OSL, InstaCal™, and FlexCal™
- Bias Tee: 32 V internal
Spectrum and Interference Analyzer Highlights
- Measurements: Occupied Bandwidth, Channel Power, ACPR, C/I, Coverage Mapping, PIM Hunting
- Interference Analyzer: Spectrogram, Signal Strength, RSSI, Signal ID, Interference Mapping
- Dynamic Range: > 102 dB in 1 Hz RBW
- DANL: -162 dBm in 1 Hz RBW
- Phase Noise: -100 dBc/Hz max @ 10 kHz offset at 1 GHz
- Frequency Accuracy: < ±50 ppb with GPS On
Signal Analyzer Highlights
- 3GPP Signal Analyzers GSM/EDGE, W-CDMA/HSPA+, TD-SCDMA/HSPA+,
LTE/LTE-A, TD-LTE/LTE-A, NB-IoT
- 3GPP2 Signal Analyzers cdmaONE/CDMA2000 1X, CDMA2000 1xEV-DO
- IEEE 802.16 Signal Analyzers Fixed WiMAX, Mobile WiMAX
- Digital TV ISDB-T, DVB-T/H Signal Analyzer
- 20 MHz demodulation bandwidth
