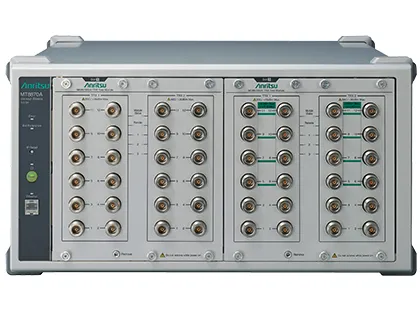

Universal Wireless Test Set MT8870A
Universal Wireless Test Set MT8870A
The high-performance wireless measuring instrument with flexibility for smartphone/IoT device/automotive chipset production line.
Description
What's NEW?
- Supported the IEEE 802.11ax 6 GHz Band
What to consider when developing 6 GHz band WLAN products
Timely support for the latest wireless technology (5G Sub-6 GHz/ 802.11ax and more)
The Universal Wireless Test Set MT8870A supports various wireless communications standards, including 5G NR Sub-6 GHz, LTE/LTE-Advanced, LTE-V2X, NB-IoT, Cat-M, V2X 802.11p, WLAN and Bluetooth for testing on mass-production lines for smartphones, automotive and IoT terminals and communications modules. Three types of MU887000A/MU887001A/MU887002A TRx test modules can be installed in the MT8870A main unit, each having a built-in vector signal generator and vector signal analyzer for Tx and Rx tests of mobile terminals and communications modules.
- Four Testers in One Platform
- Up to four measurement modules can be installed in one main frame and each module can be controlled independently. Each module shares the same power supply, chassis, and internal bus interface, helping cut infrastructure costs.
- Simultaneous Measurement of Four Devices with Direct Connection of up to 12 Device Antennas
- Installing four test units in the MT8870A main unit supports simultaneous parallel measurement of up to four connected devices under test. Since the number of antennas in wireless communications devices is increasing to facilitate more wireless communication methods, each installed MU887002A test unit supports connection of up to 12 antennas to greatly simplify the test setup.
Features
Universal Wireless Test Set MT8870A
- Designed for high volume smartphones, tablets Automotive, IoT devices and wireless modules manufacturing test applications
- Supports WLAN, cellular, Bluetooth, and other connectivity wireless applications
- 4 high performance modules in one small chassis
- Supports simultaneous measurement of multiple wireless standards
- One license enables the associated capabilities on all installed modules
TRX Test Module MU887000A/MU887001A
- Built-in signal generator and signal analyzer
- 160 MHz wide measurement bandwidth
- Wide frequency range from 10 MHz to 6 GHz
- One module supporting multiple wireless standards
Supported standards: 5G NR sub-6 GHz,
LTE/LTE-Advanced, LTE-V2X, NB-IoT, Cat-M, W-CDMA/HSPA, TD-SCDMA, GSM/EDGE, CDAM2000/1xEV-DO,
WLAN 802.11b/g/a/n/ac/ax/p (DSRC V2X), Bluetooth, ZigBee, Z-Wave, FM/RDS, GPS/Galileo/GLONASS/BeiDou/QZSS, DVB-H, ISDB-T/ISDB-Tmm
- Built-in audio analyzer/audio generator
