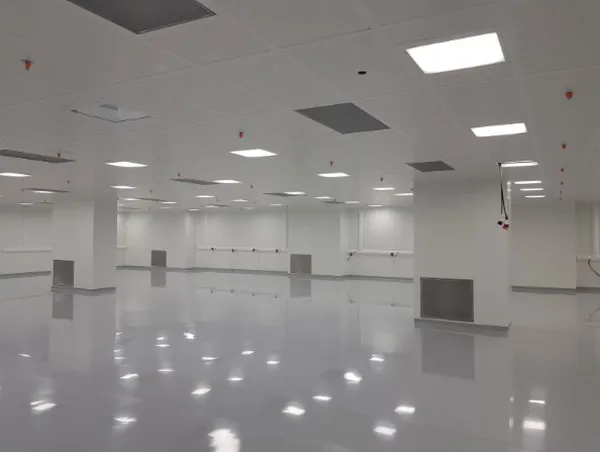

Our metal faced solid panel walk on ceiling system offers flush interlocking panel to panel edge detail to achieve a flush surface with a silicone seal or PVC cold weld joint infill to achieve an impervious face finish along the entire inside face of the ceiling. The ceiling system is connected to existing building primary structure using treaded bar drop rods. Standard ceiling panel dimensions 1200mm wide x 3000mm long (longer lengths also available depending on ceiling loading requirements). Flush integration of Cleanroom Walk-On Light Fittings (Top & Bottom Access), HEPA &Non HEPA terminal housing air diffusers offers a completely smooth flush cleaning surface free from crevasses & ledges.
Ceiling Panel Thickness start from 50mm for a 0.9kN/m² to 1.5kN/m² Walk-On loading capacity (depending on panel span) & increase to 65/70/75mm thk for 2kN/2.5kN/3kN/m² Walk-On loading capacity (depending on panel span). Various outer finishes available including PET coated metal, uPVC coated metal, Stainless steel, HPL (Phenolic Laminate) & standard polyester powder coat. Various Panel non-combustible cores available including Rockwool & Aluminium Honeycomb. Semi-Flush Fire rated version available up to 120 minutes (depending on design limitations).
