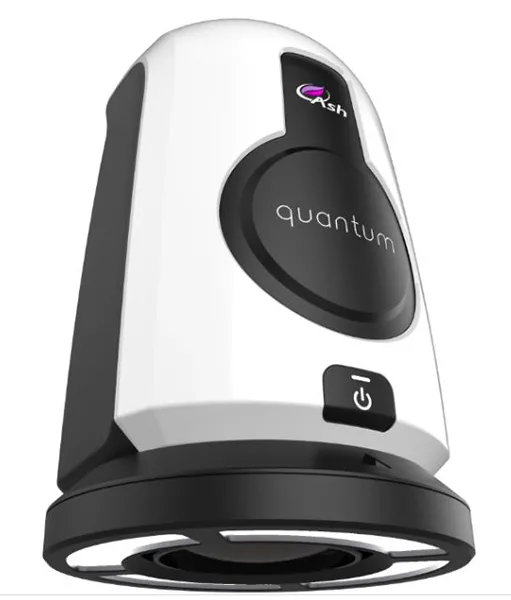

QUANTUM

QUANTUM

Quantum is a fully integrated, easy to use, instant measurement system with no PC requirement. Advanced digital image processing technology. Multi FOV zoom levels reduce measurement time and increase inspection efficiency.

FEATURES

• RTLDC™

Real-Time Lens Distortion Correction*. Lens distortion is inherent in all microscopes. Image distortion at the outer edges of large samples is automatically corrected by the Quantum. *

• AshCal™

Save time with AshCal™. Factory calibration tracking for all lenses. No recalibration when changing magnification levels, giving consistent, accurate measurement with every zoom.

FEATURES

• 2D Measurement & Graticules

Intuitive on screen full 2D patented measurement application. Point to point, diameter, angle, adjustable X-Y grid, shapes and annotation features to accommodate a multitude of samples specifications. Graticule creation allows samples to be analysed against on-screen digital templates with set tolerance limits. It also enables quick go/no-go defect analysis.

• Automatic Alignment

Automatic part alignment, removes the need for a jig. The position of a part is automatically identified and re-orientated to its programmed measurement position.
