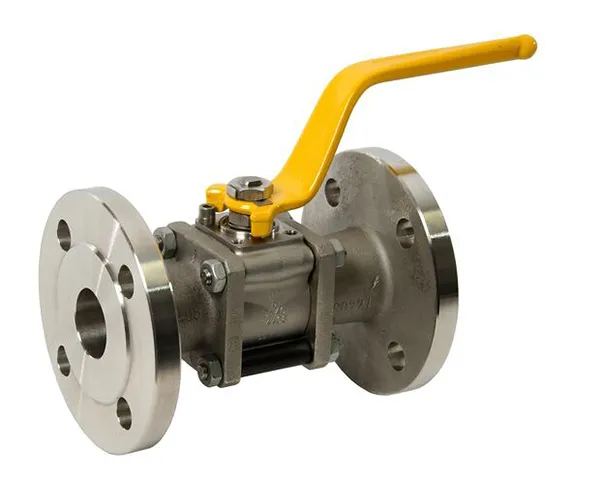

MECAFRANCE Ball Valves Series RA
MECAFRANCE specialises in the manufacture of ball valves. The production of three-part valves extends to valves in carbon steel and V4A steel with threaded connections up to 4" as well as with welding and flange connections, which cover the entire nominal diameter range up to DN 250 with reduced bore (standard) or up to DN 200 with full bore (integral).
The "RA" series are ball valves which can be operated with pneumatic or electric actuators according to DIN 3337/DIN-ISO 5211. However, it is also possible to equip them with a hand lever.
Technical Data :
Nominal sizes
DN 8 - 250
Pressure rating
PN 10 - 100 / ANSI 150 - 300
Temperature range
-40°C to +400°C
Connections
Butt weld, socket weld, threaded ends and flanged
Face to Face
EN 558, Grundreihe 1
Application
