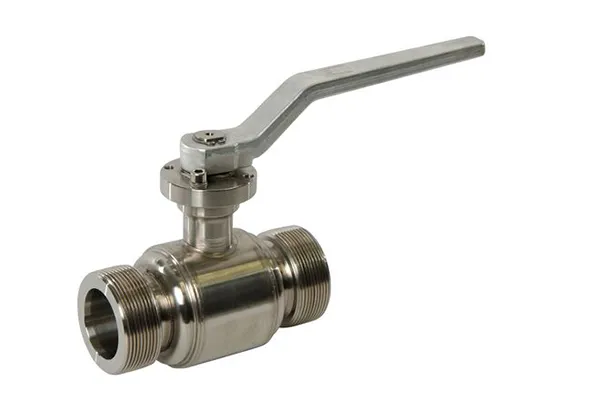

PETER MEYER Ball Valve Type P

The standard PM ball valve is a 1-piece, laser-welded design in 1.4404. A direction-independent integrated pressure relief system, practically no dead space, fire safe as standard, an anti blow-out stem and a pre-loaded packing seal according to TA-Luft ensure the highest possible process reliability.

Technical Data :

Nominal sizes

DN 10 - 150

Pressure rating

PN 10 - 40

Temperature range

-60°C to +370°C

Connections

Flanges acc. to EN 1092-1
Butt welding ends acc. to EN 12627
Threaded ends internal in acc. to EN 10226-1
Threaded ends external in acc. to DIN ISO 228-1

Face to Face

Flanged in acc. to EN 558 and ANSI B16.10
Butt welding ends in acc. to EN 12982 R1
Threaded ends in acc. to DIN 3202 T4 M2

Integrated cavity pressure relief system

• The system relieves the overpressure inside the ball (Pt) to the upstream pressure side P1 independent of the flow direction.
• If the medium is able to freeze, the upstream pressure must be on spring side. The spring is always on the body welding side.
• The chambered seats remain always in contact with the ball. The system is relieving over channels between seat and body (no abrasion or dirt in the sealing surface of the seat).
• The system is suitable for liquid and gaseous media.
• The system is also suitable for vacuum applications.

Application

• Chemical & Pharmaceutical
• Food & Beverages
• Energy & Environmental Technology
• Biotechnology & Life Sciences
• Water treatment
