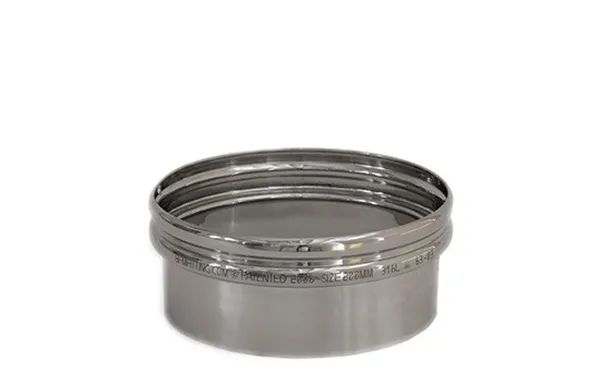

BFM SPIGOT INFORMATION

Available in Stainless Steel T304L and T316L , as well as C22 Hastelloy. They are available in a range of exact sizes, eliminating the imprecise nature of hose-clamp sleeve type connection widths and ensuring a perfect fit with the BFM® connector.

Key features:

• The design is slightly tapered, so the OD at the top of the tail is 5mm / 13/64”  greater than the base
• 89mm (3 1/2") in total length - made up of a head of 37mm (1 29/64") and a 'tail' that is 52mm (2”) long
• The tail can be easily cut down or cut on an angle to suit your existing pipework
• To enable the installation of a TR (Tool Release) connector, a 6mm / 15/64” hole must be drilled in the top ridge of the head

Note: For applications where there is a possibility for static build up, e.g. wood dust, flour, milk powder etc., we recommend using a static dissipative wire (strip), connecting the two BFM® spigots together.

Available Sizes:

Diameters: Ø100mm (4"), Ø125mm (5"), Ø150mm (6") to Ø1,650mm (65") in 50mm (2") increments
