BFM® Global Limited

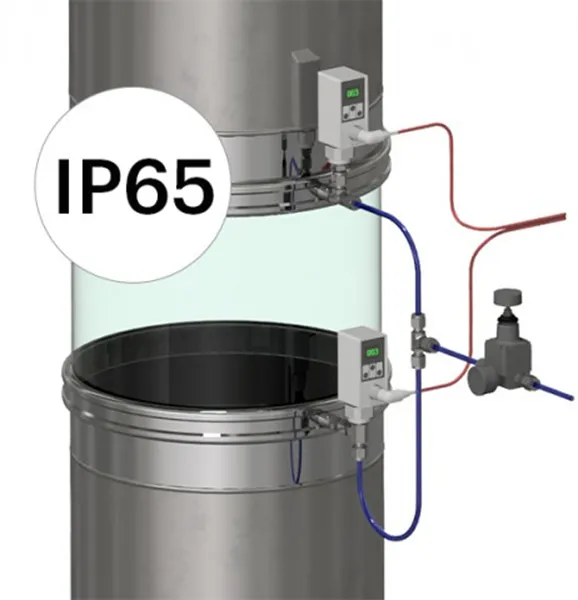

Pneumatic Monitoring System-IP65

Pneumatic Monitoring System-IP65

Compliant with:

IP65 (waterproof and dust-proof)

Key features/uses:

• Designed to be a monitoring system in positions where there is a risk that hands could be placed near dangerous moving parts, such as rotary valves and rotating knives.
• A simple to install system that pumps pressurised air between the cuff of the BFM® connector and the spigot.
• Air-line sensors immediately detect if this outward pressure is released as the connector cuff begins to pushed inwards and sets off an alarm and/or shuts off any moving parts below.
• Features two pressure sensor switch/displays, and a tamper-proof gauge.
• Can be used as a positional sensor to ensure all connectors in a large plant are installed correctly at all times.

Recommended Retail Price: US$290 / €250

BFM® Part No: 10400
