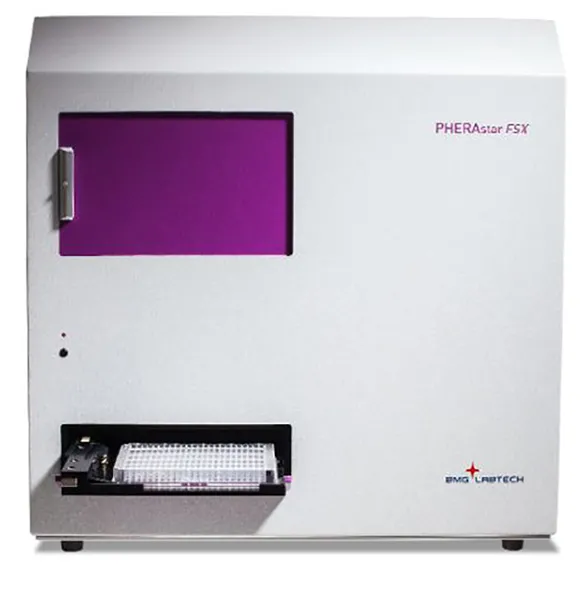

PHERAstar FSX

PHERAstar FSX

Powerful and most sensitive HTS plate reader

The PHERAstar® FSX is our most sensitive multi-mode reader for high-throughput screening, combining this sensitivity with fast read times. Thanks to the unique Optic Module system, Simultaneous Dual Emission, UV/vis spectrometer, and dedicated AlphaScreen® and TRF lasers, the PHERAstar FSX will perform your assay with ease and speed, even in 3456-well microplates.

PHERAstar FSX

Select Science seal of quality

No longer worry about installing filters and dichroics: the PHERAstar FSX comes with easy-to-handle, assay-optimized Optic Modules which contain all application-specific filters, mirrors, dichroics and/or polarizers, and are automatically recognized by the plate reader. In addition, the PHERAstar FSX is equipped with four matched and assay-optimized photomultiplier tubes (PMTs) which are automatically selected for the relevant detection mode. You can also measure assays with two emission wavelengths at the same time thanks to the Simultaneous Dual Emission.

For HTS automation purposes, the PHERAstar FSX offers improved robotic integration capabilities and multi-user control.

Features

• The most sensitive reader in fluorescence intensity and polarization
• The only plate reader with 5 assay-dedicated detectors
• Simultaneous Dual Emission, including for Alpha Technology
• 9 decades luminescence dynamic range
• Dedicated AlphaScreen®/AlphaLISA®/AlphaPlex™ laser
• New generation TRF-laser
• Top and bottom focal height adjustment
• High-precision injectors with simultaneous reagent injection and detection
• High-speed absorbance measurements
• Easily integrated into automated systems
