BRB Globus Srl

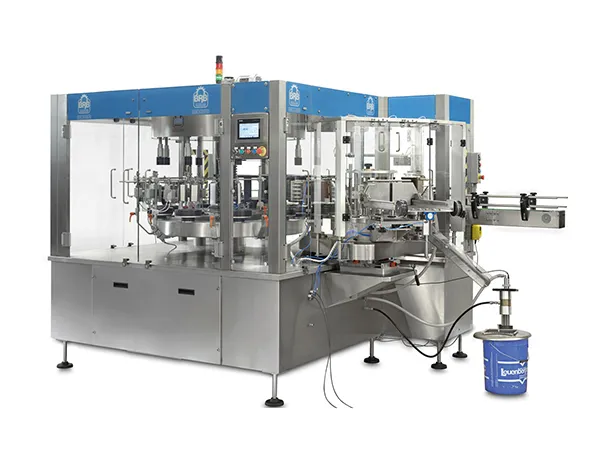

Paper Labels Mega Static

Paper Labels Mega Static

PRODUCTION UP TO 30,000 BPH

The Mega Static labelling machine is fully automatic and has been designed for the application of partial or pre-cut wrap-around paper labels on cylindrical and/or shaped containers mainly made of glass.

The Mega Static has a fixed label magazine and can have 2, 3, 4, 5, 6 and 8 rotating blades, depending on the length of the label and speed. The cold glue unit is equipped with a pneumatic pump and rubber or steel glue distribution roller. The rubber or aluminium blades transfer the glue over the entire surface of the label.

STRENGTHS OF THE LABELLING MACHINE

•    Sturdy and precise mechanics
•    Label length up to 300 mm
•    Even glue distribution on the entire label
•    Reliability

SPECIFICATIONS

• Plate rotation by mechanical cam or electronic cam
• Cylindrical or shaped containers
• Application of up to 5 labels on cylindrical or shaped containers
• Option to have more than 1 label on the same station
• Pneumatic glue pump with air and glue sensor
• Touch screen control panel
• Labels low sensor
• Rubber roller configuration and aluminium blades for low speed
• Steel roller configuration and rubber blades for high speed
• Glue film thickness check through micrometric adjustment with no container, no label, minimum glue system
• Automatic speed control
• Accident prevention protections according to CE standards for operator safety

OPTIONALS

•    Mechanical or opto-electronic bottle/cap positioning systems
•    Label and/or marking control with sensors or cameras and bottle reject systems
•    Pressurisation system for empty bottles even with bottles with an off-centre opening
•    Ink jet and laser marking systems
•    Labels low sensor
•    Overlapping or opposing auger system with or without servo motor
•    Remote assistance via internet connection
•    Data exchange with the line or external data analysis centres
•    Protections with doors in tempered and shatterproof glass
•    Status seals or inverted L or U tamper evident seals
