Self adhesive Labels Mega Ade

Self adhesive Labels Mega Ade

PRODUCTION UP TO 36.000 BPH

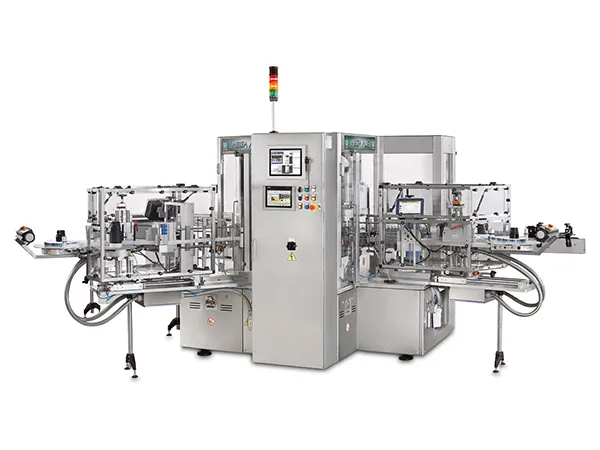

The Mega Ade labelling machine is fully automatic and has been designed for the application of self-adhesive pre-spaced paper or plastic labels from reels on cylindrical and/or shaped containers.

The Mega Ade is fitted with self-adhesive units of Herma or Etipack of 40, 60, 90 or 150 M/Min.

STRENGTHS OF THE LABELLING MACHINE

• Speed synchronisation of the adhesive units with the machine via encoder
• Extreme precision of the self-adhesive units
• Option to have two positions for full rolls on the self-adhesive unit
• Option to have the NON STOP system to never stop the machine while loading a reel to replace one that is running out

SPECIFICATIONS

•    Plate rotation by mechanical cam or electronic cam
•    Application of up to 5 labels on cylindrical or shaped containers
•    Cylindrical or shaped containers, even in puck
•    High quality materials ensuring long operating life
•    High labelling precision
•    Touch screen control panel
•    Quick format change
•    Automatic speed control
•    Accident prevention protections according to CE standards for operator safety

OPTIONALS

•    Mechanical or opto-electronic bottle/capsule/cap positioning systems
•    Label and/or marking control with sensors or cameras and bottle reject systems
•    Pressurisation system for empty bottles even with bottles with an off-centre opening
•    Ink jet, hot foil and laser marking systems
•    Non stop system
•    Unstable container management
•    Overlapping or opposing auger system with or without servo motor
•    Remote assistance via internet connection
•    Data exchange with the line or external data analysis centres
•    Protections with doors in tempered and shatterproof glass
•    Pressurization system for empty bottles even with bottles with an off-center mouth
•    Inverted L or U seals
