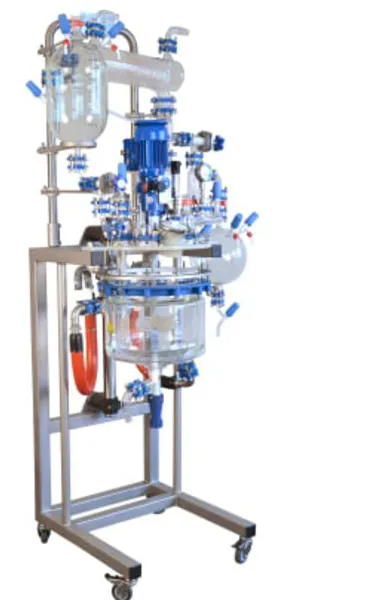

MidiPilot - glass reactor for small volumes
Multipurpose glass reactor for small volumes
Glass reactor: 20, 30 liter
Pressure: -1.0 (FV) to +0.5 bar
Temperature: -60 °C (optional -90 °C) to +200 °C
Material: Borosilicate glass 3.3, PTFE, PFA, PEEK
Other setups are available.
The midiPilot is our sturdy multipurpose glass reactor for small volumes. It is specifically designed for applications in kilo lab, for chemical process development and GMP complaint API syntheses.
The reactor's explosion proof design (ATEX) and inert materials allow safe processing of solvents and acids in a completely sealed reaction vessel. The compact reactor system can easily be modified: interchangeable reaction vessels of 20 and 30 liters including interchangeable stirrers are available. The glass reactor is equipped with a lifting / lowering device for easy and efficient opening and cleaning.
We produce complete solutions for chemical processing: Reactor systems including accessories like sampling devices, pH probes, rectification columns with structured packing, process monitoring and control as well as integration of auxiliary equipment such as temperature control units, nutsche filters / dryers, gas scrubbers or mixing vessels.
