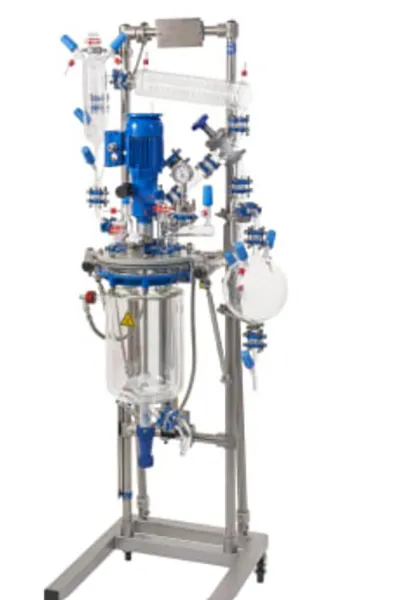

MiniPilot - mini-plant pilot reactor
Multipurpose glass reactor for small volumes
Glass reactor: 5, 10, 15 liter
Pressure: -1.0 (FV) to +1.0 bar
Temperature: -60 °C (optional -90 °C) to +200 °C
Material: Borosilicate glass 3.3, PTFE, PFA, PEEK
Other setups are available.
With the miniPilot product family (reactor, nutsche filter, scrubber) we offer mini-plants for chemical process development, scale-up, process simulation and kilo-scale production.
The Reactor's explosion proof design (ATEX) and inert materials allow safe processing of solvents and acids in a completely sealed reaction vessel. The compact standard reactor setup can easily be modified, interchangeable reaction vessels of 5, 10 and 15 liters including interchangeable stirrers are available. The reaction vessel is installed on a lifting / lowering device, for easy opening and cleaning. The distillation glass overhead is built with flexible ball-socket joints for multiple chemical reactions under full vacuum.
We produce complete solutions for chemical processing: Reactor systems including accessories like sampling devices, pH probes, rectification columns with structured packing, process monitoring and control as well as integration of auxiliary equipment such as temperature control units, nutsche .
