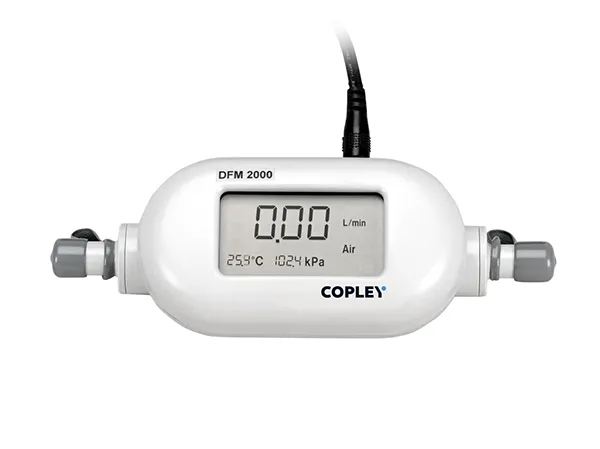

DFM 2000 - Flow Meter

DFM 2000 - Flow Meter

Operating on the basis of thermal mass principle, the Flow Meter model DFM 2000 has a range of 200 L/min, a resolution of 0.01 L/min between 0 and 90 L/min (0.1 L/min between 90 and 200 L/min) and an accuracy of +/- 2% of flow rate. Fitted with temperature and pressure sensors, the DFM 2000 is able to calculate the ambient volumetric flow rate and can also be used in-line (with supplied inlet filter).

High accuracy
Volumetric mode: Calculation of flow rate base on live T/P conditions
Portable, hand-held device
Standard mode: Calculation of flow rate based on pre-set T/P conditions

DFM 2000 Features
Operation Principle	Hot-Wire Mass Flow Principle
Flow Rate Range	0 - 200 L/min
Resolution	0.1 L/min from 90 to 200 L/min
Accuracy	+/- 2% of reading
Volumetric Flow Calculation	Accurate calculation from in-built T & P sensors
Inlet Filter	Required in unfiltered laboratory environments
Connectivity	Interface to external devices such as the BAC 100i and TPK 100i
Reporting	RS-232 (flow rate and calibrate data)
Calibration	Factory calibration only
Use 'in-line'	Can be used 'in-line' (for non-pharmacopoeial methods)
Power Source	Universal mains input voltage
