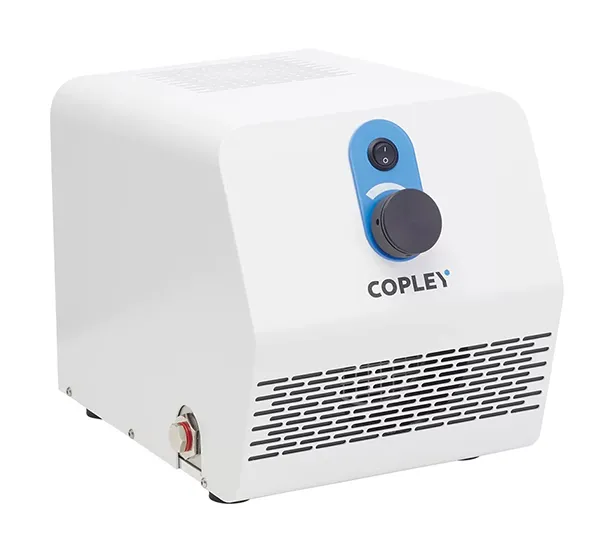

LCP6 - Low Capacity Vacuum Pump

LCP6 - Low Capacity Vacuum Pump

Designed for optimal operation at low flow rates, the Low Capacity Pump Model LCP6 is ideal for MDIs, nebulisers, ADIs and nasal products tested at 28.3 L/min. The flow rate can be adjusted between 0 and 133 L/min using the control valve on the front of the unit.

Low maintenance
Small unit footprint
Advanced sound insulation
Oil-free
Left and right vacuum inlets – choose where to place pump in system
Self-sealing compound carbon vanes continually adjust so that the pump effectively performs with ‘as new’ efficiency throughout its service life

LCP6 Technical Specifications
Type:	Rotary vane
Lubrication type:	Dry
Max. flow in L/Min (unrestricted):	133
Max. sonic flow through NGI:	N/A
Max. vacuum level:	<15 kPa
Applications:	MDIs, Nebulisers, ADIs, Nasal Sprays, Nasal Aerosols, Nasal Powders
Routine maintenance:	None
Dimensions (w x d x h):	270 x 335 x 280 mm
