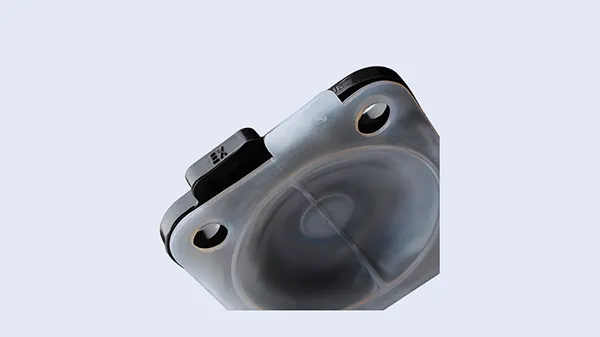

SAUNDERS® EX Endurance Diaphragm

SAUNDERS® EX Endurance Diaphragm

Saunders® EX Endurance Diaphragm is a unique material combination which offers outstanding performance in applications exposed to prolonged sterilisation regimes, or higher temperature up to 175°C (347°F).

Features And Benefits

• Outstanding high temperature performance and resistance to long term exposure at elevated temperatures
• Ideal for steam distribution and supply, sterile barrier, and block-and-bleed applications
• Improved seal-to-atmosphere performance and reduced requirements for re-torqueing of fasteners after thermo cycling

Technical Details

DESIGN FEATURES

• Modified PTFE Wetted Face
• Silicone Backing Cusion

SIZE RANGE

• DN8-200 (¼”- 8″)

TEMPERATURE RANGE

• Maximum constant 175°C (347°F)
• Maximum intermittent 175°C (347°F)
• Minimum temperature – 20°C (-4°F)
