SAUNDERS® PR Pure Resilience PTFE Diaphragm

SAUNDERS® PR Pure Resilience PTFE Diaphragm

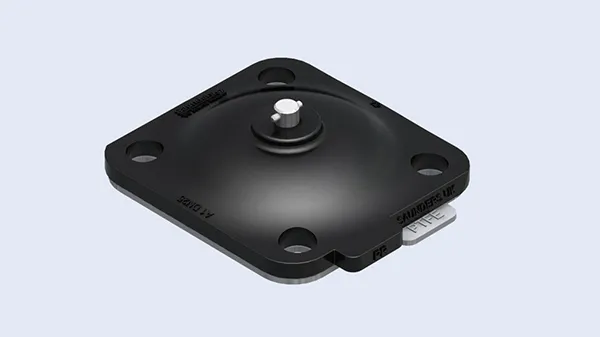

Saunders® PR Pure Resilience diaphragms are robust two piece leaf type. The design incorporates a virgin PTFE wetted face backed with a fabric reinforced support diaphragm.

Features and Benefits

• Stud anchorage is fully encapsulated to ensure maximum strength and lifetime in service
• Full batch traceability provides maximum security, reliability and repeatable performance
• Industry conforming low level of extractables and leachables

Technical Details

DESIGN FEATURES

• Bayonet style attachment to permit “float” in compressor attachment and avoid point loading/mechanical stress

MATERIALS OF CONSTRUCTION

• 100% virgin PTFE wetted contact face with EPDM support backing

SIZE RANGE

• DN8 (0.25”) – DN200 (8.00”)

TEMPERATURE RANGE

• -20 ⁰C (-4 ⁰F) to 160 ⁰C (320 ⁰F)
