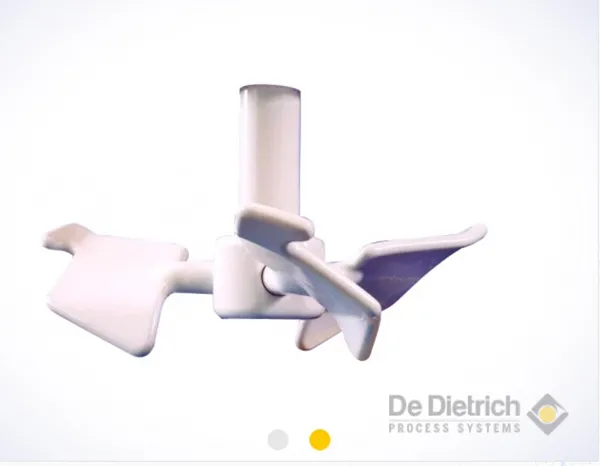

Mixing THE GLASLOCK SYSTEM
Mixing THE GLASLOCK SYSTEM
The GlasLock system allows installation of specific blade profiles as well as several flights of blades to better suit the process requirements. This system, therefore, makes it possible to obtain small, non-agitated volumes less than 1%.
The only system in the world with removable blades
This system has been especially designed for BE reactors where the main opening is the manhole, but is usable for all kinds of reactors.
Fitting and dismantling are carried out laterally, making it possible to work on the scraping agitators without completely dismantling them. With multi-tiered agitators, it is possible to modify just one stage independently of the others by leaving the agitator in place.
The assembly of a blade in its conical emplacement, both fully enamelled, is done using a manual tool according to a simple procedure. GlasLock uses a single hub offering greater flexibility by allowing all types of blade profiles to be fitted. This technology reduces the time needed to dismantle the drive, when this is required.
Our teams can define and install a blade profile according to your process and your agitation parameters. This technology makes it possible to fit several flights of blades to better suit the reaction.
CHARACTERISTICS
GlasLock blades are lined with DD3009 glass for superior corrosion resistance. They are available in a variety of blade designs to meet various process requirements.
ADVANTAGES
- Multi process-system
- Individual dismantling of the blades
- Small agitated volume
- Easy maintenance
- Limited stock of blades
