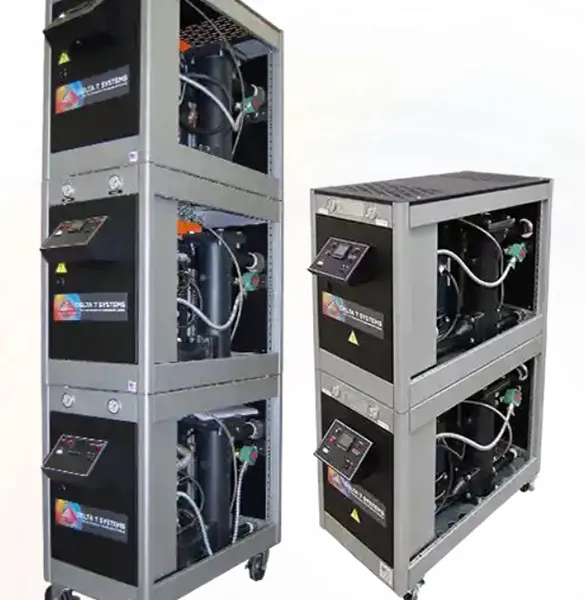

Stacked Unit - Eco Series

Stacked Unit - Eco Series

The Eco Series water temperature control system is our most popular TCU. The new pump design is compliant with the DOE Energy Conservation Standards. These pumps produce higher outputs measured in flow and pressure compared to the existing design. In addition, the energy consumption is significantly reduced.

These Units can be Stacked 2 or 3 High

• ¾ to 3 HP Pump, 25 to 130 GPM
• 9 to 24KW Low Watt Density Heater
• Dual or triple Zone TCU with small footprint
• Each unit offers indirect cooling up to 4.0 sqft. heat exchangers
• Offered with common water supply inside the cabinet to save space
• Common electrical supply possible depending on heating capacity
• Rebuilt kit available to separate the units if needed in the future

OVERVIEW

Eco Series Safety Features:

• Bi-metal switch that prevents overheating
• Circuit protection for the motor
• High temperature pump seal
• Dry run protection for the heater
