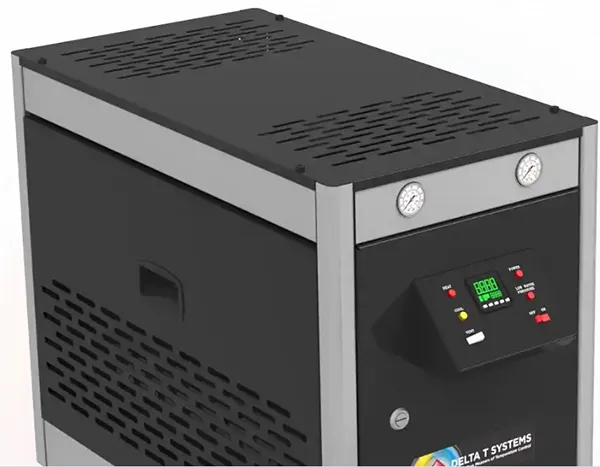

Standard Unit - Eco Series

Standard Unit - Eco Series

The Eco Series water temperature control system is our most popular TCU. The new pump design is compliant with the DOE Energy Conservation Standards. These pumps produce higher outputs measured in flow and pressure compared to the existing design. In addition, the energy consumption is significantly reduced.

• ¾ to 3 HP Pump, 25 to 130 GPM
• 9 to 24KW Low Watt Density Heater
• 2 tank design
• Direct or indirect cooling
• 250°F (121°C) Fluid Operating Temperature

OVERVIEW

Delta T Systems Eco Series temperature control unit (TCU) utilizes a new pump design that creates 50% to 100% greater flow at the same pressure point on the pump curve, as compared to other current designs. This new pump’s reduced energy consumption allows the Eco Series to be compliant with the Department of Energy’s (DOE) 2020 Conservation Standards that will take mandatory effect as of January 2020.

Eco Series Safety Features:

• Bi-metal switch that prevents overheating
• Circuit protection for the motor
• High temperature pump seal
• Dry run protection for the heater

Additional Eco Series Design Improvements:

Design improvements and material selections make the Eco Series temperature control units less susceptible to traditional maintenance problems, and easier to maintain.

• Industrial strength frame and cabinetry
• Lift-off panels for easy access
• IEC and UL compliant components

Compact heater design allows higher capacity in a smaller footprint.

FEATURES

Standard Features

• 9, 12, 18 or 24 KW Heater
• 250°F (121°C) Fluid Operating Temperature
• Microprocessor-Based PID Controller
• Motor Overload Protection
• Over Temperature Protection
• Low Water Pressure Protection
• High Pressure Safety Relief Valve Protection
• Liquid-Filled Delivery and Return Pressure Gauges
• Fused Transformer
• Grounded Circuit Control
• Pilot Lights indicating Separate Functions of Use
• Rugged, Heavy Gauge Sheet Metal Cabinet
• 3″ Industrial-Grade Casters, swivel and lockable
• Ease of Service Design
• NEMA 1 Electrical Specifications & Wiring in Conformance with NEC Electrical Codes
• Automatic Venting
• Solid State Heating Contactor
