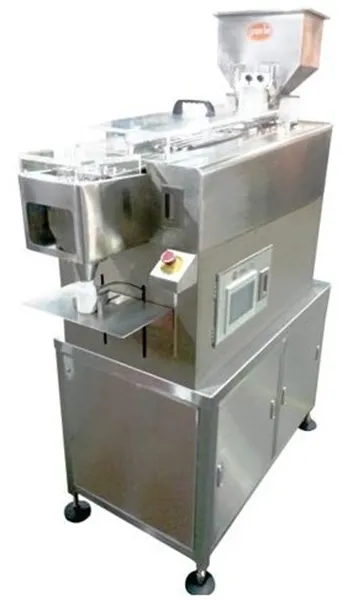

PMC-25 Multi-Channel Tablet Counter Bottle Filler

PMC-25 Multi-Channel Tablet Counter Bottle Filler

PMC-25 Multi-Channel Tablet Counter Bottle Filler

  • Main Drive system from Bonfiglioli
  • Health mode alarm for sensor contamination due to dust
  • Vibration speed setting through HMI
  • FDA approved contact Parts Includes Aluminum alloys and SS 316L
  • Container transfer system controlled through servo drives
  • Round, Oval, Elliptical, & Square Containers compatible
  • Recipe storages
  • Memory flaps for accurate counting
  • HMI for Program feeding parameters settings
  • Comfortable hopper Positions for product feed
  • Compressed Air Pressure Control Switch
  • GMP compliance
  • Touch Screens alarm indicates the machine status & alarm conditions
  • No undercounts
  • Auto height adjustments according to container height

TECHINICAL SPECIFICATION

PMC-25 MULTI CHANNEL COUNTER

Specification

Description

Material

All SS contact parts are of SS 316L & hard Anodized aluminum

Dimension (mm)

(L) 1300 X (W) 500 X (H) 1200

Required Power

1.00 KW

Electric Spec

230V, 50Hz, 1PH, 4A

TABLET



Tablet Diameter Ǿ 5

Max. 1,44,000 Tablet/Hr.

Tablet Diameter Ǿ 8

Max. 90,000 Tablet/Hr.

Tablet Diameter Ǿ 10

# 0

# 2

Max. 78,000 Tablet/Hr.

Max. 42,000 Capsule/Hr.

Max. 60,000 Capsule/Hr.

Type

4 Track

Hopper Capacity

15 Lts.

Bottle Diameter

30 mm - 110 mm

Bottle Height

60 mm - 200 mm

Air Consumption

6Kg/cm²

Net weight

200Kg ( Approx.)

Salient Features

  • No bottle - No fill with Pneumatic control shutter gates.
  • User friendly touchscreen controls
  • Vibrator speed adjustable for tablet flow by touchscreen
  • Data management through password functions
  • Low noise level
  • Tool less assembly
  • Handle coated and un-coated tablet & Hard gel Capsules
  • Air purging and vacuum suction for counting sensor.
