Dorner Mfg. Corp

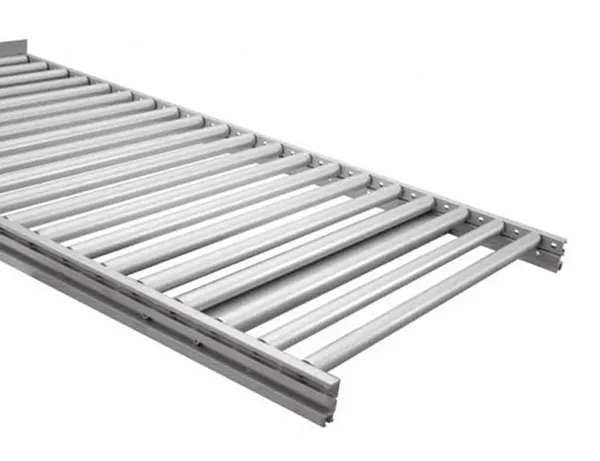

2200 Gravity Roller Conveyors

2200 Gravity Roller Conveyors

Benefits of 2200 Series Gravity Roller Conveyors:

Specifications

• Loads up to 80 lbs/ft (119 kg/m)
• Conveyor widths: 6″ (152 mm), 12″ (305 mm), 18″ (457 mm) and 24″ (610 mm)
• Conveyor lengths: 2′ (610 mm) to 12′ (3,658 mm) in 6″ (152 mm) increments
• Single piece frame lengths to 12′ long
• Rollers: 1″ (25 mm) diameter rollers on 1.2″ (31 mm), 2.4″ (61 mm) or 3.6″ (91 mm) centers
• Roller Material: Anodized aluminum tube with steel ball bearing
• Side T-slot fits Dorner drop in hardware
• T-slot fits standard M6 square nuts
