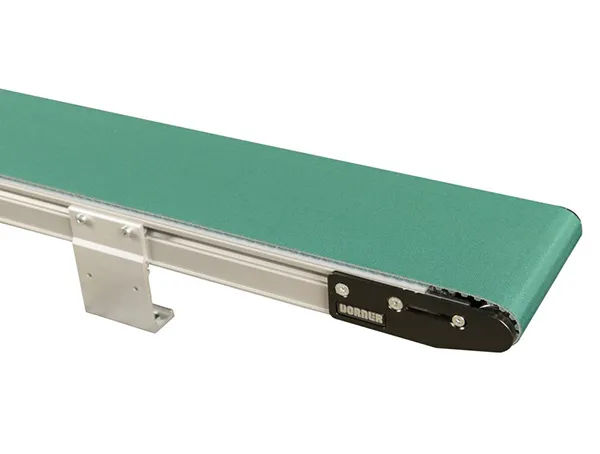

2200 Precision Move Conveyors

2200 Precision Move Conveyors

Benefits of 2200 Precision Move Belt Conveyors:

Dorner’s Precision Move technology is designed to move your product to the exact location, at the exact time and in the exact position it needs to be for the next phase of the production line.

Features & Benefits

• Reverse v-guide provides positive tracking along entire length of conveyor
• Positively driven belt ensures belt does not slip and allows for higher load capacity
• 1″ width with tip up tail to allow for easy belt removal
• 23 unique gearbox interfaces with support for 158+ motors
• Additional widths and guiding options

Applications

• Precision Part Movement
• Accurate Small Part Handling and Positioning
• Automated and Manual Assembly
• Machine Integration
• Robotic Pick-N-Place
• Precision Indexing
• Timed Conveying
• Precision Move Automation

General Specifications

• Loads up to 200 lbs (91 kg)
• Belt speeds up to 370 ft/min (113 m/min)
• Belt widths: 1″ (25 mm) to 24″ (610 mm)
• Conveyor lengths: 18″ (457 mm) to 30′ (9,144 mm)
• 1.5″ (38 mm) pitch diameter drive pulley turns approximately 4.7″ (121 mm) of belt per revolution
• T10 profile cogged belt with 12 tooth (end drive) or 16 tooth (mid drive) drive pulley
• Conveyor mechanical accuracy +/- 0.02″
• Conveyor package w/ servo motor index accuracy +/- 0.04″
• 12 mm diameter integral drive shaft
