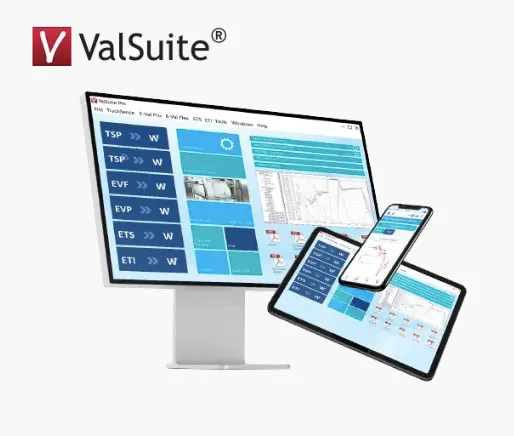

ValSuite Validation Software
ValSuite® Validation Software
ValSuite is our reputable validation and calibration software. This intuitive software combines all our equipment systems into a single platform. Thereby opening the door to a vast amount of new possibilities by allowing you to combine data loggers with the traditional thermocouple systems.
We offer multiple versions of ValSuite to meet your exact needs. Most notably ValSuite Pro, our FDA 21 CFR Part 11 compliant software that ensures full data integrity.
ValSuite offers features like customized reports with clear pass/fail criteria, test templates, data analysis, monitoring, live data and much more. ValSuite is developed according to GAMP principles and is available in multiple languages for Windows 7, 8 and 10 (32/64-Bit). ValSuite is availabe in four generic versions: ValSuite Basic, ValSuite Medical, ValSuite Plus and ValSuite Pro.
Highlighted Features
- One software platform for all Ellab equipment
- Combine TrackSense data loggers and the E-Val Pro wired thermocouple system in the same session
- Automatic PDF report generation with clear pass/fail indication
- Can run from a stand-alone PC or networked
- The data analysis tools greatly reduce the time required to locate critical data
- The ability to zoom in the graphs and display multiple windows at a time, simplifies the process of identifying important data
- Multiple calculations, such as min/max, standard deviation, average, delta T and lethality can be calculated using any block of the displayed data – eliminating the need for exporting data and compromising data security
Software Data Analysis Features
ValSuite collects and presents validation data from both the E-Val™ Pro and TrackSense® Pro data logging systems. The data from both systems can be presented and analyzed in the same session.
The software can run up to 160 TrackSense channels or 120 E-Val Pro channels at a time, all of which can be identified and displayed in different groups, such as penetration and distribution. Any grouping or specific channels can be displayed in a separate data block and analyzed. It is also possible to merge individual sessions and run analysis for comparison purposes.
Remote Access & Data Monitoring
You can connect directly to the ValSuite SQL database by using an iPhone with the ValSuite App. An intuitive tool to monitor online data from ETS, E-Val Pro and TrackSense SKY sessions. This functionality is available through an IP address setup via a PC.
The online alarm limit system for the basic parameters of temperature, pressure and relative humidity can be activated through a relay. Thereby providing an input to a SCADA system or any other external, or PC, alarm system. The gathered data is then either presented in a table or graph.
