Wireless Data Loggers

Wireless Data Loggers

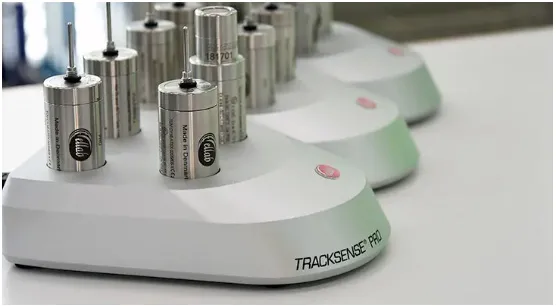

For wireless data loggers, Ellab offers the TrackSense, which is a wide range of different data loggers designed for various applications and processes. Wireless data loggers are ideal for situations that involve sealed off areas or require additional measuring parameters.

In addition to this, the data loggers are equipped with interchangeable sensors, allowing sensors to easily be switched and replaced on the go.

The interchangeability is part of the unique electronic design. Each sensor includes an e-prom containing the sensor ID number and calibration constants which are recognized by the software.

The design also includes an A/D converter, which transforms analog data into digital data saved in the data logger memory during acquisition – before ultimately being uploaded to ValSuite.

This data is uniquely linked to the sensor, which can be easily exchanged with any TrackSense Pro data logger without the loss of data. An additional advantage is that only the sensor needs to be returned for factory re-calibration.

Ellab also offers a SKY option, which allows users to equip loggers with a real time data communication module for viewing live data within the validation software.
