Esco Micro Pte

Isoclean®

Isoclean®

Healthcare Platform Isolator - Without Filter Below Workzone

Optimized Solution for Sterile/Aseptic Applications

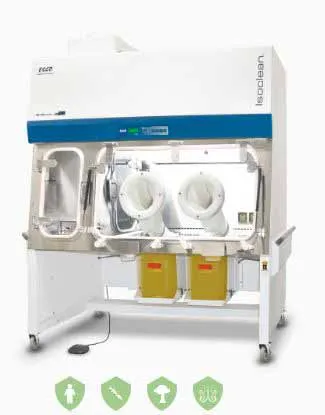

The Isoclean® Healthcare Platform Isolator (HPI-G3) facilitates the isolation of a product or process while providing the required sterile/aseptic environment. It is configured to operate at positive or negative pressure in single or recirculating airflow. This equipment provides a comprehensive range of personnel and product protection in addition to the surrounding work areas and the environment.

Features

• Inbuilt dampers to allow pressure testing without having to use cover plates, tape & silicone
• Centrifugal, direct-drive blowers designed for maximum energy efficiency and minimal maintenance
• Sentinel™ Gold Microprocessor Control System supervises all functions and monitors airflow and pressures in real-time
• Airlock pass-through chamber ensures work zone remains sterile during insertion and removal of items
• Horizontal sliding tray prevents operator fatigue during transfer procedures
• Electromagnetic Interlocking Doors with time delay effect ensures safety and containment between the Pass Chamber and the Process Chamber
• Optional sharps disposal system enables smoother work flow and minimizes transfers in order to enhance patient protection and sterility
• HEPA filters (H14) with a typical efficiency of >99.999% at 0.1 to 0.3 microns provide superior ISO Class 5 air cleanliness, 100 times better than competing products
• Fluorescent lamps (optional LED) deliver >800 Lux to the work surface for superior overall illumination
• With ISO Class 5 environment, the Process Chamber facilitates aseptic processing in an EU GMP Grade A condition
• Frameless front visor panel with highly rounded edges to minimize crevices and maximize door vision panel
• Circular glove ports with minimal crevices, no exposed bolts and nuts
• Single-piece stainless steel work surface with raised edges on all sides contain spillages
• Optional adjustable hydraulic stand, with casters, elevates to accommodate user preference for sitting or standing work surface height
• Angled drain pan for easy cleaning
