Air Showers

Air Showers

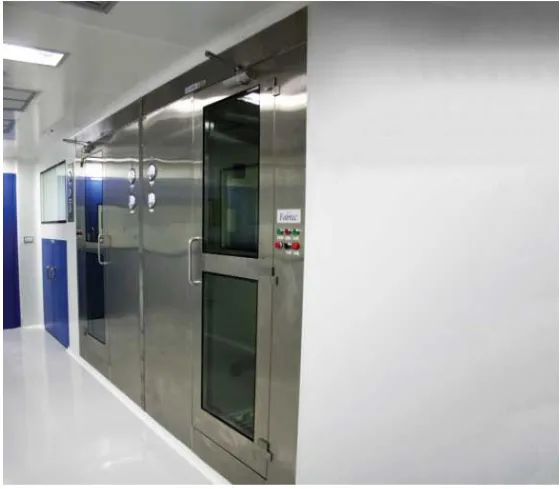

Air Showers are specialised enclosed antechambers used to reduce cross-contamination within the facility. Depending on the application, they are integrated with the entry or exit air lock system of the production area. Our Air Showers use high-velocity HEPA filter jet streams in excess of 20 m/s to dislodge particles, dust, lint and other contaminants from clothing during entry or exit. 21CFR and GMP compliant, manual/microprocessor based control system to manage the entire cycle.

FEATURES

• The material of construction is powder coated SS 304/ SS 316 with HEPA Filter H14/H13
• Indicator lights mounted on both sides of the air shower exterior regulate traffic flow in and out of the clean room.
• Permanently lubricated direct drive centrifugal blowers are used in conjunction with stainless steel/ PVC air nozzles.
• Performance: Air Cleanliness- ISO Class 5 [ISO 14644-1:1999 (E)]; Air Velocity- 0.45 ± 0.05 Mps
• Vertical airflow, minimum vibration level and noise level is less than 67 Db on Scale ‘A’ when ambient is no greater than 55 Db on Scale ‘A’
