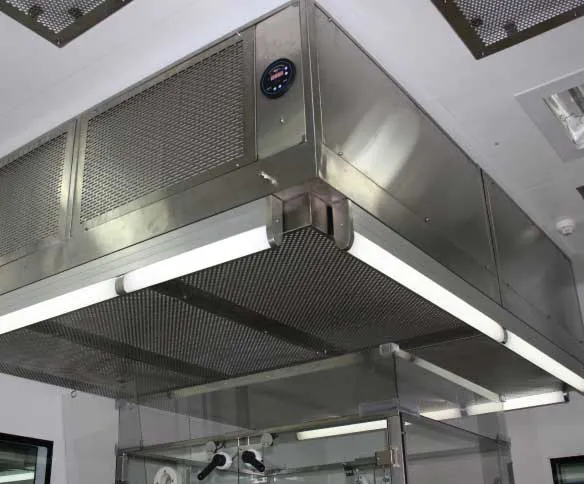

Vertical Laminar AirFlow systems

Vertical Laminar AirFlow systems

Our GMP/FDA complaint Vertical LAF systems provide product protection for workspaces of varying sizes including sampling, general process technology and sterile product filling. Product protection is ensured by means of targeted air flow – a clean and low-turbulence air flows vertically or horizontally onto the work area and is released back into the surrounding area at table height. The motor blower is statically and dynamically balanced so sufficient capacity and static pressure is maintained ensuring required airflow for the entire lifetime of the HEPA. Airborne particles are collected in a controlled manner and discharged.

FEATURES

• The material of construction is powder coated SS 304/ SS 316 with HEPA Filter H14/H13
• LED lighting, digital gauges, automatic fan control for constant LAF speed and a perforated plate or membrane distributor air outlet surface
• Performance: Air Cleanliness- ISO Class 5 [ISO 14644-1:1999 (E)]; Air Velocity- 0.45 ± 0.05 Mps
• Vertical airflow, minimum vibration level and noise level is less than 67 Db on Scale ‘A’ when ambient is no greater than 55 Db on Scale ‘A’
• Optional add ons include integrated cooling system, flameproof (ATEX) model, legs with or without rollers, flow restriction via PVC curtain, blades or closed wall elements and a tubular frame construction with electrically monitored safety glass doors and glove ports
