Sievmaster 500-S

Sievmaster 500-S

Sievmaster 500-S

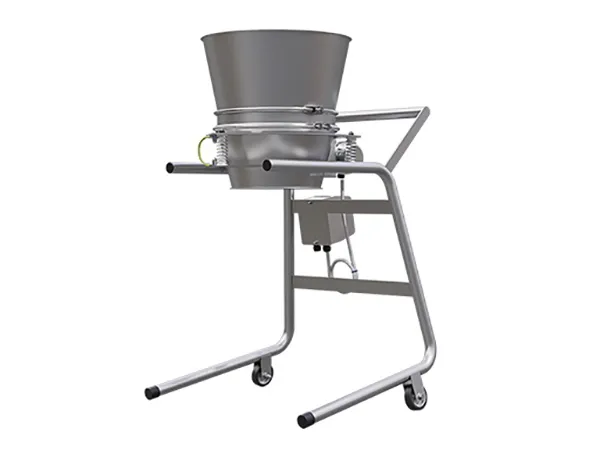

The Sievmaster 500-S is a vibratory sieve designed with a 500mm diameter stainless steel hopper built on a wheeled, mobile frame.

What is the Sievmaster 500-S?

The big brotherof the 200-S, the 500-S is a small and economically priced sieve that does not compromise on accuracy.

It suits those needing to sieve products in smaller batches but still requiring a fast, efficient system. The cone shaped inlet allows the operator to easily load a full 25 kg sack of product into the sieving area in one go.

Its stainless steel construction makes this machine suitable for use within the most arduous of environments, and the mobile stand provides a simple means of manoeuvring from one location to another.

Features & Benefits

  •    Easy-Clean hygienic design, no crevices
  •    No tool, quick change screens
  •    Wet or dry applications
  •    All stainless steel body and contact parts
  •    Dust and waterproof IP66
  •    Meets HACCP, BRC audit requirements
  •    Conforms to CE, UKCA, FDA, EC 1935/2004 and ANIA regulations
  •    Low maintenance/running costs – tool free disassembly & minimal servicing

Specification

The below displays the specs for the Sievmaster 500-S vibratory sieve. For further specs and information, please get in touch to find out more.



SM 500-S

Max Throughput with 2mm mesh

(product and mesh dependent)

6,500 kg/h (14,330 Ibs/h)

Screen Diameter

400 mm (15.7”)

Standard Motor

0.08 kW (0.1 HP)

Approx. Weight

65 kg (143 Ibs)

Standard Finish

Satin finish 0.95Ra

Typical Noise Level

<70dB (certificates available)

ATEX Rating (Internal & external)

Option to upgrade to ATEX zone 22 II 3D.

Optional Certifications

3.1 material, EAC, IECEx, and UL certificates.

Contact Parts

304 Stainless steel (1.4301) upgrade to 316 (1.4401) available

Non-Contact Parts

304 Stainless Steel (1.4301)

Country of Design

United Kingdom

Country of Manufacture

United Kingdom
