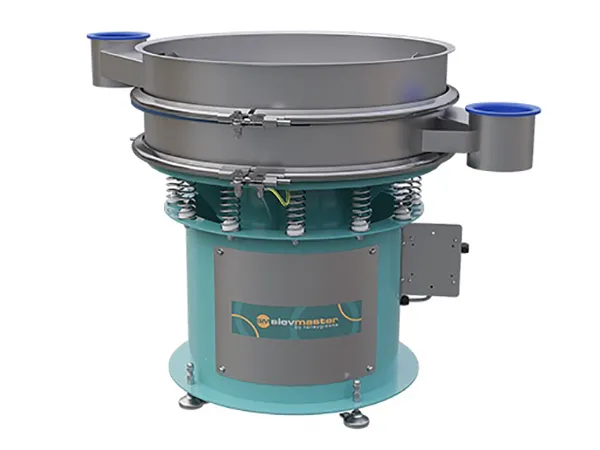

Sievmaster Multiscreen Range

Sievmaster Multiscreen Range

The Sievmaster Multiscreen Range uses a motor underneath a series of mesh screens with decreasing aperture sizes to achieve different cuts of product.

Features & Benefits

No tool, quick change bonded mesh screens
Continuous processing of material into required fractions
Conforms to CE, UKCA, FDA, EC 1935/2004 and ANIA regulations
Wet or dry applications
Dust and waterproof to at least IP65
Easy -Clean hygienic design
Low maintenance / running costs – tool free disassembly & minimal servicing
Adjustable weights to control material on screen for optimum dwell patterns
All stainless steel and contact parts (non-contact parts can be upgraded to stainless steel)

Specification

The below displays the specs for the Sievmaster Multiscreen Range of vibratory sieves. For further specs and information, please get in touch to find out more.

	SM 800	SM 1200	SM 1500
Max Throughput (product dependent)	Contact us for further information.	Contact us for further information.	Contact us for further information.
Screen Diameter	800 mm (31.5”)	1170 mm (46.1”)	1470 mm (57.9”)
Standard Motor	0.55 kW (0.7 HP)	1.00 kW (1.3 HP)	2.2 kW (3.0 HP)
Approx. Weight	250 - 300 kg (551 – 661 Ibs)	300 - 375 kg (661 - 827 Ibs)	375 - 450 kg (827 - 992 Ibs)
Standard Finish	Satin finish <0.95Ra
Typical Noise Level	<70dB (certificates available)
ATEX Rating (Internal & external)	Upgrade to ATEX zone 22 II 2D (internal & external) or ATEX zone 21 II 2D internal & ATEX zone 22 II 3D external.
Optional Certifications	3.1 material, EAC, IECEx, and UL certificates.
Contact Parts	304 Stainless steel (1.4301)
Non-Contact Parts	304 Stainless Steel (1.4301)
Country of Design	United Kingdom
Country of Manufacture	United Kingdom
