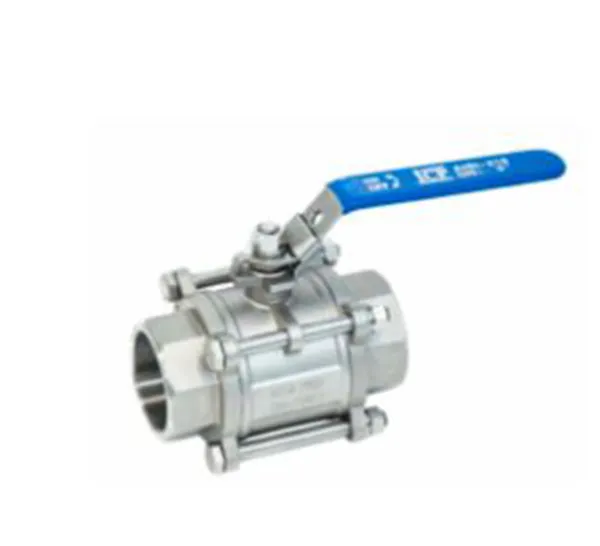

3-piece ball valves

3-piece ball valves

Type KH140 / KH141 / KH142 / KH143 (ICP Valves)

Pressure: 25 / 63

Nominal size: 8 - 100

The ICP Valves 3-piece ball valves have a 3-piece nody and are made of stainless steel, in a floating version with a full bore valve design.

Connections:
– KH 140: Thread according to DIN 259/2999 (GAS)
– KH 141: Thread according to ASME B1.20.1 (NPT)
– KH 142: Socket weld ends according to ASME B16.11 & DIN 3239 part 2
– KH 143: Butt weld ends according to ASME B16.25 & DIN 3239 part 1
Marking: CE – PED
PN63 (up to 2”) / PN25 (2½“-4“)
