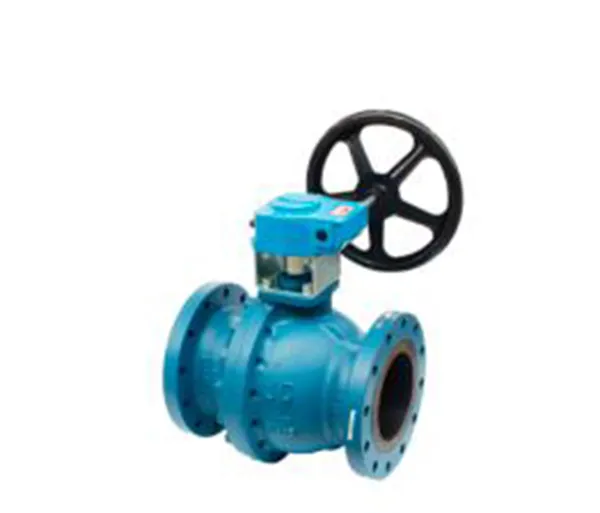

ANSI flanged ball valve, semi trunnion
Type 1515 / 1530 (JC Valves)
Pressure: 50bar
Nominal size: 8" - 12"
“The JC Valves types 1515 and 1530 are flanged ball valves according to ANSI with a semi-trunnion bearing. It is important to note that the seal is not live loaded and is therefore not innately pressed onto the ball.
This type is used when a floating ball valve reaches its limits, but a trunnion ball valve is not necessary. This variant is therefore a version that combines the advantages of the floating and those of the trunnion ball valve and fills the gap between these two.
The standard version of the ball valve includes a anti-blow out stem, an antistatic device, a pressure balancing cavity hole and a “”live loaded”” packing. With a wide range of approvals (Fire Safe, Fugitive Emission, ATEX, TRCU, CRN, SIL 3), it can be used in virtually all industries. Another advantage is also the availability of a large selection of materials that makes the ball valve even more flexible. “
