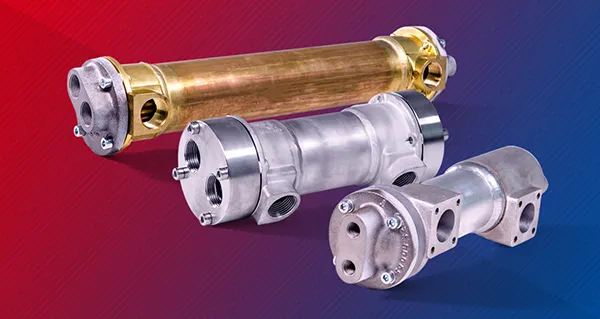

SHELL-AND-TUBE HEAT EXCHANGERS
Line of standard products
TECHNICAL DESCRIPTION
Our universal shell and heat exchanger in a modular system construction is used mainly to cool liquids such as lubricating oil and hydraulic oil or water, as well as for heating by means of saturated steam. Water, water/glycol mixtures or seawater can be used as coolants.
More than 200 graduated building sizes in different materials form the basis for an optimal and detailed type selection.
Standardization means we can ensure short delivery times.
MATERIAL STANDARDS
Component
Material standard
BCF/BCP
CCF/CCP
SSCF/SSCP
Internal tubes
CuZn28Sn1As
P235GH TC1
1.4571
Tubesheets
CuZn38Al-C-GM
CuZn38AlFeNiPbSn
1.4408 / P265GH / GE240
1.4408 / 1.4571
Baffles
CuZn37
Shell
CuZn37PbO 5
Connection chambers + stand
EN-GJL-200
Gaskets
Klinger C4430, Alchem 6375
Coat of paint
RAL 5012, light blue
stained and passivated
OPTIONAL MATERIALS
CuZn20Al2As
CuNi30Mn1Fe
P265GH as fixed Tubesheets
as well as 1.4571 as floating tubesheet
for the P version
1.4571 for the P version
Flange connections shell side
Connections flanged
Plastic coating, bronze
PTFE, Viton
Other RAL colors1
Insulation
Mineral wool with galvanized steel sheet
