Extrusions
Extrusions

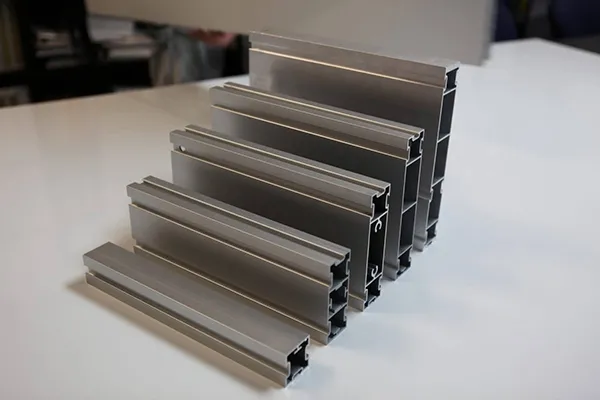

Gerbig Cleanrooms has designed about 60 aluminum extrusion and PVC extrusions. The extrusions make up the AireCell modular cleanroom system. The extrusions are generally used to construct hardwall and softwall cleanrooms but are also used for workstations, pass-thrus and cleanroom partitions. We have panel gasket/retainers for .060”, .125”, and ¼” material.
AireCell Ceiling Extrusions
Some extrusions are available primarily for strength in cleanroom systems.
- CX233 – Cross Tee Extrusion
- CX127 – Ledge Extrusion
- CX244 – 4″ Beam Extrusion
- CX232 – 6″ Beam Extrusion
- CX235S – 7 1/2″ Beam Extrusion
- CX255 – 10″ Beam Extrusion
AireCell General Extrusions
Vertical Studs
- CX203
- CX234
- CX237
- CX231
- CX228
- CX222R
- CX228
- CX239
- CX222
- CX226
- CX230
- CX237F
Horizontal Extrusions
- CX211
- CX251
- CX213
- CX227
- CX213F
Special Applications
Gerbig has the ability to design unique die profiles to accommodate special applications.
- CX201 center to offset
- CX200 single to double flutes
- CX202 foreign wall interface
- CX229 I-Beam
- CX119 ¼” ledge
- CX127 Ceiling Ledge Extrusion
- CX225 Hinge
- CX125 Base Holding
Batten System
Some cleanrooms are built with cleanroom panels attached to steel studs with batten strips. For this application, use CX101 and CX105 battens along with CX103, 104 106. For corners, use CX102 and CX108.
Battens
- CX101
- CX103
- CX105
- CX108
- CX102
- CX104
- CX106
- Filler Strips
PVC Extrusions
PVC extrusions are generally used as retainers for tempered glass, egg crate, filler strips, gasket seals, or for removable panels.
- #9169 1/4″ Glass Retainer
- #5864 Panel Retainer
- #5686 Filler Cover Strip
- #9311 Gasket Seal
- #4794 In Slot Panel Retainer
