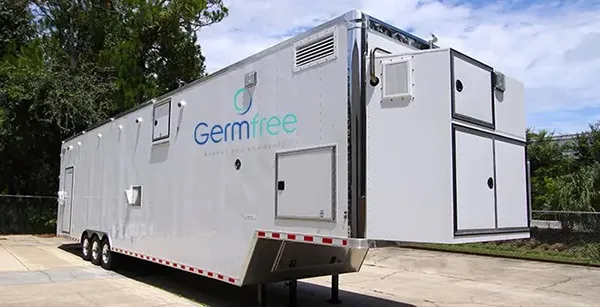

BioGO BSL-3 Mobile Laboratory
bioGO BSL-3 Mobile Laboratory
Features
Interior Materials:
Walls and Ceiling - Seamless wall system
Panels come in 40 foot lengths to minimize wall seams corners permanently sealed with an epoxy compound specifically designed for this purpose.
The end result is a monolithic barrier that is durable and easily cleaned.
Flooring:
Finished floor will be a high performance, homogenous, welded seam sheet polyurethane floor.
Casework:
Type 304 Stainless Steel work casework
Purpose built, all welded construction with adjustable shelving.
Design Excellence:
Germfree’s Mobile Biocontainment Laboratories are designed to be exceptionally durable. To achieve this, only the highest grade, cleanroom-compatible materials are used in the facility’s construction.
The interior walls are constructed of a high performance composite that provides a seamless interior suitable for frequent wash-downs with sanitizing agents as well as gas bio-decontamination.
The floor is seamless vinyl, coved up the walls, and epoxy-sealed to the walls for ease of cleaning.
All work surfaces are seamless stainless steel with casework designed for gas and vapor phase decontamination. Surfaces are coved for easy spill cleanup and sanitization. Edges are rounded and polished to avoid snagging Personal Protective Equipment (PPE).
MEP
Mechanical Specifications
A heating, ventilation and air conditioning (HVAC) system is installed in the bioGO facility. The HVAC system is engineered to maintain a comfortable working temperature and humidity, and provides an inward flow of air into the laboratories. In the BSL-3 Laboratory, the mechanical ventilation also prevents recirculation to spaces outside of the laboratory.
Electrical Specifications
bioGO Laboratories are designed to be powered from shore power and are equipped with an automatic transfer switch for integration to locally available generators to provide redundancy in case of power outages or fluctuations.
- Connections for utility power and/or auxiliary generator inputs are provided via transfer switch.
- Region-specific electrical configuration
- Standard Power Requirements:
- 110-230V, 50/60Hz, 3Ph, 160kVa
- Single point connection
- Shore power inputs are provided
- Onboard Diesel Generator provided for critical systems.
Plumbing Specifications
The Trailer Laboratory Plumbing System provides fresh water to the three sinks and shower from the onboard 80 gallon (303 liter) Fresh Water tank. The two laboratory sinks have individual point-of-use sump pumps which transfer the sink waste water directly to the onboard 90 gallon (341 liter) Gray Water Waste tank. The Shower drain & Shower Room sink have one point-of-use sump pump. The sump pump outlet ports are connected to the Gray water waste tank. The waste tank’s drain port is connected to the sanitary sewer to drain continuously or is closed to temporarily hold the waste water until it can be connected to a sanitary sewer line.
