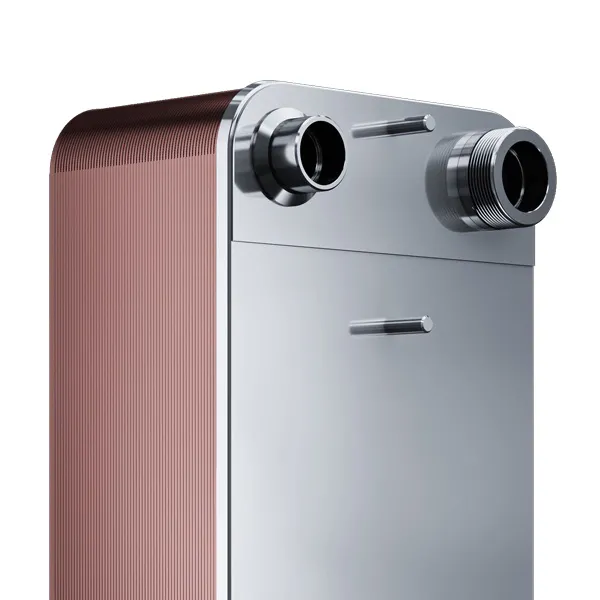

R brazed plate heat exchangers

R brazed plate heat exchangers

R brazed plate heat exchangers are intended for cooling or heating systems to work as evaporators or cooling medium condensers.

Specially adjusted heating plates corrugation pattern ensures effective cooling medium evaporation or condensation. It is a proven solution for heat pumps or refrigerating units. RH version allows for working with cooling medium with pressure up to 45 bar.

Refrigerant Distribution System (RDS) enables efficient distribution of medium droplets and their even evaporation, regardless of heating channel position against inlet connection. This solution allows for effective utilization od the entire heat exchange area in the exchanger.

Features

• Effective cooling medium evaporation or condensation thanks to the specially formed channels
• RH version allows for working with medium with pressure up to 45 bar and has been optimized for the R410A medium
• Dynamic boiling medium distribution system (RDS)
• Stainless steel
• High heat exchange coefficient
• Solid, compact design

RDS SYSTEM

Hexonic developed the unique refrigerant distribution system RDS, for evaporators with potentially higher cooling performance. The system ensures even medium distribution in evaporator channels, while at the same time reducing steam overheating fluctuations.
