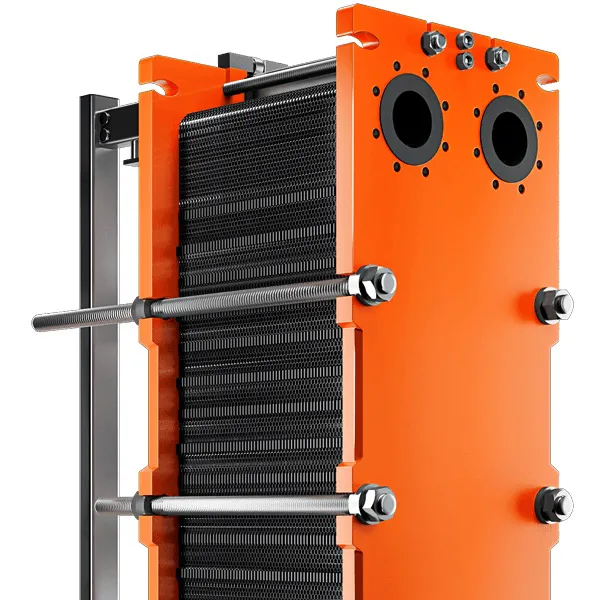

JAG F plate and frame heat exchangers are a new, revolutionary solution, ensuring not only increased flow turbulence, but also extensive heat exchange surface.
JAG F bolted plate heat exchangers are a new, revolutionary solution, ensuring not only increased flow turbulence, but also extensive heat exchange surface.
Innovative JAG heating plate corrugations pattern, the result of 6 years of work on product development, allows for more compact, lighter, and above all more efficient exchanger, perfectly adjusting to individual requirements. The new “jagged” channel design increases flow turbulence, which improves heat exchange and also decreases sediment accumulation.
The additional benefit is an extensive heat exchange surface and decreased overall pressure drops. JAG F plate heat exchanger also features a range of technical solutions for the frame construction that make the highly efficient JAG F plate heat exchanger a reliable solution in many applications.
Features
- High thermal performance thanks to innovative heating plate corrugations pattern
- Technical solutions facilitating the exchanger installation and operation
- Option to adjust the exchanger design to the required installation operating parameters by selecting proper number and size of the heating plates
- Heating plates made of stainless steel or titanium to be used in aggressive media systems or pools with salt water
- Dismountable design – allows for cleaning and extension, if necessary
- Wide range of products
Design
- METAL ROLLER: in larger models – allows for easy sliding of rear plate, decreasing time and effort of maintenance. The rollers are equipped with Teflon or polyamide slides that stabilize the rear plate
- U-LEG
- ADDITIONAL FRONT FEET
- SPECIAL CARRYING BAR PROFILE
- LOCK WASHER
- FRONT AND REAR COVER PLATE
- CONNECTIONS SIZE: DN32 TO DN250
